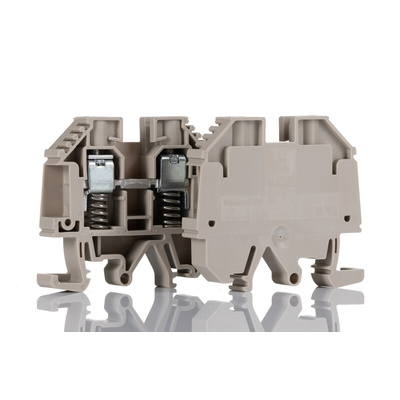

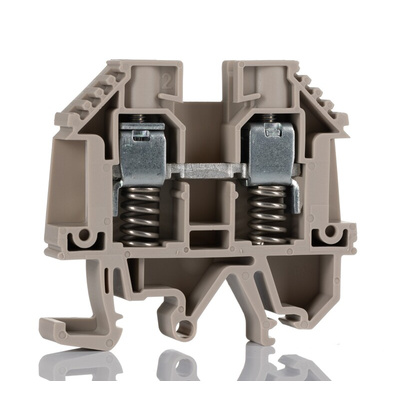

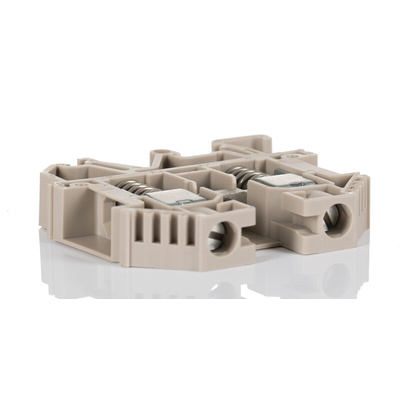

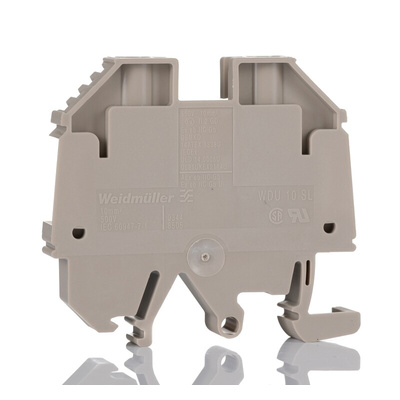

9537490000, Weidmuller WDU Series Brown Feed Through Terminal Block, 10mm², Single-Level, Screw Termination, ATEX, IECEx

Weidmuller Feed-Through Terminal Block, 16 to 6AWG Wire Size Range, Screw Connection Type - WDU Series - 9537490000

Keen for a tidy way to link cables in your wiring setup? This feed-through terminal block from Weidmuller does the trick. It has two clamping points, so you'll have enough room to set up a dual connection system. A current rating of 57A means this product stands up to the rigours of your high-power equipment. Thanks to its compact dimensions of 56.6 (H) x 9.9 (W) x 51.1mm (D), this unit fits neatly into tight spaces.

Features & Benefits

• Open side gives you quick and easy access to your wires
• Broad wire size range between 16 and 6AWG for versatility
• Screw connection for a secure hold on wires

Applications

• Construction equipment
• Robotics
• Marine engineering
• Transport industry
• HVAC systems

How do I mount this terminal block?

You can install this terminal block without the need for any tools by simply snapping it onto a DIN rail.

What is this terminal block made from?

It's made from Wemid, which is resistant to impact and wear for long-lasting performance. It's also flame-retardant for safety in the event of a fire.

Approvals

1-11

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
