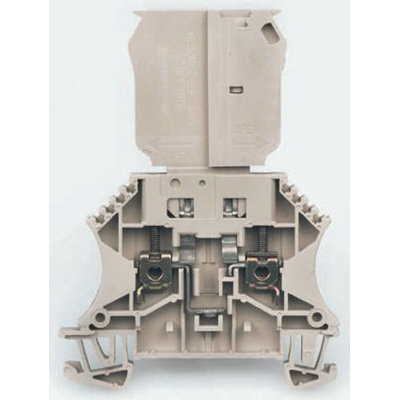

1763940000, Weidmuller WTR Series Beige Fused DIN Rail Terminal, Single-Level, Screw Termination, Fused

Vertical Mount Terminals

Incorporating copper alloy rising cage screw clamp technology ensuring reliable mechanical and electrical connection
Compatible with 5x20mm fuses

Note

The voltage and current ratings on this page are due to VDE ratings.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Approvals

VDE

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
