99.429.5807.6, Wieland GST18 Series Connector, 3-Pole, Female, 3-Way, 16A

Cable Mount Plugs and Sockets

Available in standard screw connection with or without strain relief.
Strain relief version includes top cover.
Also available in spring loaded connection versions

Standards

DIN VDE 0628, EN/IEC 61535 (in draft).

Approvals

UL 1977 approved for Use in Data, Signal, Control and Power Applications

Wieland GST Connector

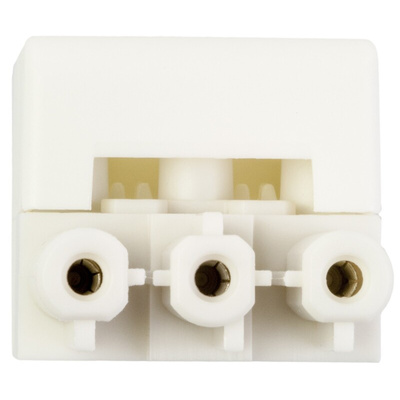

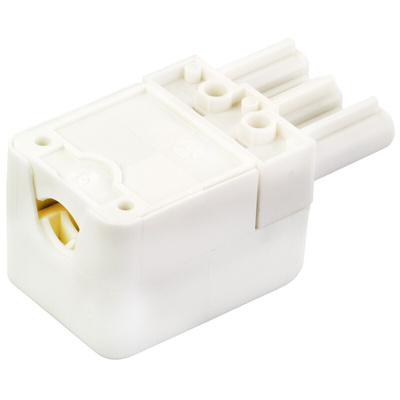

The Wieland GST connector is an ST18 series female, 3-pole, 3-way connector with strain relief. It has an electric rating of 250V and 16A. Strain relief includes a top cover. Mechanical and colour coding provides for safe and easy separation of different applications, virtually eliminating mismating errors a leading earth contact and an optional locking device all contribute to ensuring the safest possible connections. This is available in white colour. Also available in spring-loaded connection versions.

Features and Benefits

• 0.5 to 2.5mm² wire size
• Connection cycles 50 to 100 (at 16A resistive load)
• Contact material is made of brass (tin-plated)
• Operating temperature is 100°C
• Thermoplastic used as insulating material

Applications

• Lighting application
• Construction sites
• Used in data, signal, control and power applications
• Shop displays and exhibition stand wiring
• Factory assembled equipment

Certifications

• UL listed
• DIN
• VDE 0628
• EN
• IEC 61535
• DIN
• VDE 0470
• IP20C rated
• IP40 rated

GST18 Compact Connectors

The GST18 is a pluggable device connector for use in lighting and other factory-assembled equipment. Mechanical and color coding provides for a safe and easy separation of different applications, virtually eliminating mis-mating errors. An IP20 touch-safe design, a leading earth contact and an optional locking device all contribute to ensure the safest possible connections.
