92.232.1000.2, Wieland GST18 Series Cable Assembly, 3-Pole, Male to Female, 3-Way, 16A, IP40

Cordsets

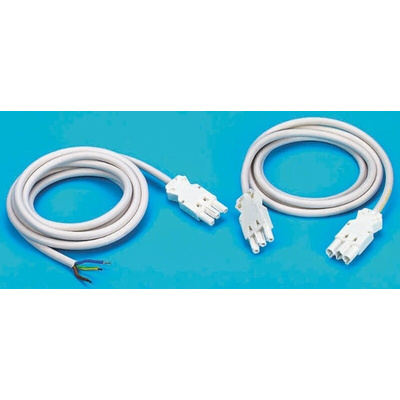

GST18 cordsets in a variety of combinations and lengths
1.5mm² flexible cable

Standards

DIN VDE 0628, EN/IEC 61535 (in draft).

Wieland GST Connector

The Wieland GST connector is an ST18 series male to female, 3-pole, three cable assembly connector with 1m cable and strain relief. It has an electric rating of 250V and 16A. Strain relief includes a top cover. Mechanical and colour coding provides for safe and easy separation of different applications, virtually eliminating mismating errors a leading earth contact and an optional locking device all contribute to ensuring the safest possible connections. This is available in white colour. Also available in spring-loaded connection for two ranges of the wire size.

Features and Benefits

• 1.5mm² flexible cable
• Connection cycles 50 to 100 (at 16A resistive load)
• Contact material is made of brass (tin-plated)
• It is pluggable device connector
• Operating temperature is 100°C
• Panel cut-out 33 x 15.6mm
• Thermoplastic used as insulating material

Applications

• Lighting application
• Construction sites
• Used in data, signal, control and power applications
• Shop displays and exhibition stand wiring
• Factory assembled equipment

Certifications

• UL listed
• CSA certified
• OVE
• SEV
• N
• FI
• VDE 0470
• IP20C rated
• IP40rated

GST18 Compact Connectors

The GST18 is a pluggable device connector for use in lighting and other factory-assembled equipment. Mechanical and color coding provides for a safe and easy separation of different applications, virtually eliminating mis-mating errors. An IP20 touch-safe design, a leading earth contact and an optional locking device all contribute to ensure the safest possible connections.

GST 18i 3 pole: leads
