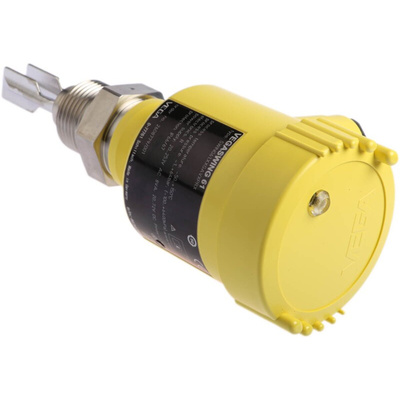

SWING61XXGAVXPRX, Vega VEGASWING 61 Series Vibrating Fork Level Switch, Relay Output, Horizontal, Vertical, Plastic Body

Vega Vibrating Level Sensor

The Vega Vibrating level sensor has a contactless electronic switch. It has a simple, yet robust measuring system and is easily unaffected by both the physical and chemical attributes of the liquid. This sensor is virtually unaffected by the chemical and physical properties of the liquid. It functions even under difficult conditions such as turbulence, air bubbles, foam generation, build-up, strong external vibration or changing product. Vibrating liquid/solid level probe -Squings. All these probes are maintenance-free and have an external LED switch status indication

Features and Benefits

Simple and robust measuring system
Chemical-resistant stainless steel with PBT housing
External LED switch status indication
Unaffected by product density, viscosity, conductivity, dielectric constant or external vibrations
V-free DPDT relay output
maintenance-free, with optimum factory calibration
Self-monitoring and selectable fail-safe (min/max)
Viscosity ranges between 0.2mPa s and 1000mPa s
Liquid density: 0.7 to 2.5g/cm3
Cable entry: 2 x M20 x 1.5

Applications

It is designed for industrial use in all areas of process technology and can be used in liquids
For use with a wide range of liquids, pastes and slurries

Certifications

EMC Directive 89/336/EWG
LVD 73/23/EWG
