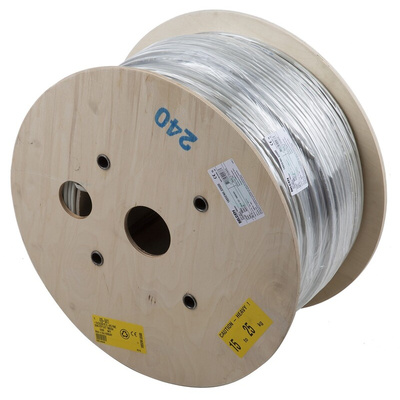

1885ENH.03500, Belden Grey LSZH Cat7 Cable S/FTP, 500m Unterminated/Unterminated, Кабель

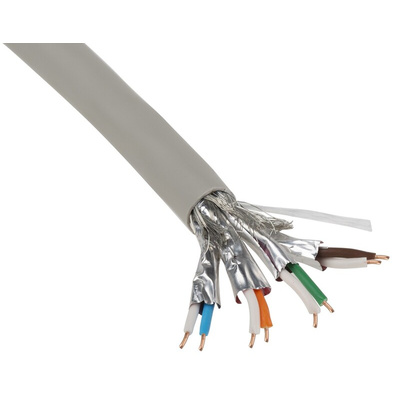

Belden 1885ENH - Category 7 Nonbonded-Pair ScTP Cable

CAT7 (1000MHz), 4-Pair, S/FTP shielded, Premise Horizontal Cable, 23 AWG solid bare copper conductors, Foam Polyolefin insulation, each pair with Beldfoil® shield, overall tinned copper braid shield (30% coverage), LSZH jacket.

Features and Benefits

·4 individually shielded twisted pairs
·23AWG solid bare copper conductor insulated in polyethylene
·Tinned copper braided screen
·Low smoke zero halogen (LSZH) jacket
·Operating temperature -20°C to +60°C
·Complies with ISO/IEC 11801 2nd edition and prEN 50288-3-1

Applications

This Cat7 cable is used for horizontal and building backbone. Supports current and future Cat6a and Cat7 appplications such as: 10 gigabit ethernet (10GBase-T), gigabit ethernet (1000Base-T), 100 Base-T, 10 Base-T, FDDI and ATM.

Standards

ISO/IEC 11803; EN 50173; TIA/EIA 568-A-5 Enhanced
