7812E.00B100, Belden Cat6 Ethernet Cable, U/UTP, Grey PVC Sheath, 100m, Кабель

DataTwist® Cat 6 UTP

Features and Benefits
· Solid unshielded cable
· Offers superior performance characteristics across the frequency range

Applications
· Horizontal and building backbone cable
· Supports Category 6 and Category 5e applications e.g. Gigabit internet

Standards

· International standard: ISO/IEC 11801 2nd edition (2002) and ISO/IEC 11801 Amendment 2 (2010)
· European standard: EN 50173-1 (2002) and EN 50173-1 Amendment 1 (2009)
· U.S. Standards: ANSI/TIA/EIA 568-B.2-1 (2002)

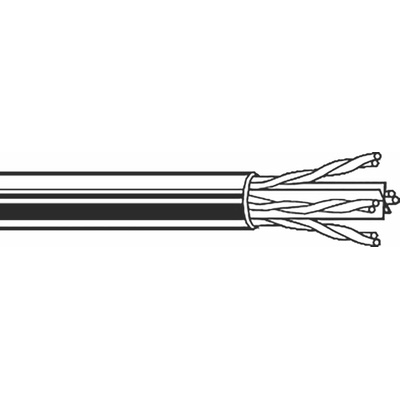

Belden Cat6 Ethernet Cable, 23AWG - 7812E

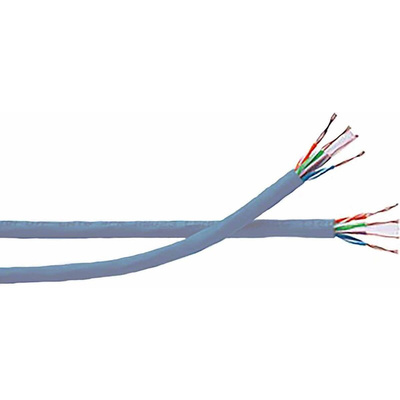

This Cat6 Ethernet cable from Belden serves as a data transfer channel for your computers and communication devices. It has eight conductors made of copper material, meaning it delivers a reliable connection. Each conductor is covered in PE (polyethylene) material to offer insulation and protect you from electric shocks. The conductors are also twisted in pairs to prevent crosstalk and electromagnetic interference (EMI) for noiseless transmission. This cable comes in a reel and can be easily cut down to size.

Features & Benefits

• Low mutual capacitance of 56pF/m for high integrity signals
• Light bulk cable weight of 41kg/km for easy handling
• Broad operating temperature range of -30°C to +60°C for use in demanding conditions
• Data transfer rate of 1000Mbps for high-speed transmission
• Unterminated at both ends for versatility

Applications

• Horizontal and building backbone cable
• Data banks
• Surveillance centres

Why are the conductor insulators on this cable colour coded?

The conductors on this cable are colour coded to make them easily identifiable when crimping them to a connector. They can be used for straight-through, rollover or crossover connections.

Standards

TIA/EIA 568B1; ISO/IEC IS 11801; EN50173
