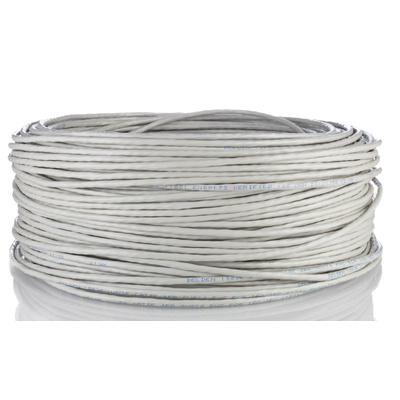

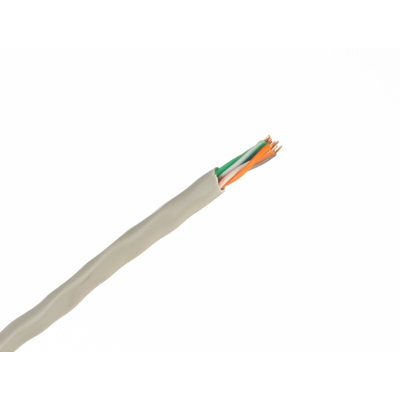

1583E.00B100, Belden Cat5e Ethernet Cable, U/UTP, Grey PVC Sheath, 100m, Кабель

Belden Cat5e Ethernet Cable, 100m Length, 24AWG - 1583E.00B100

Use this Ethernet cable from Belden to establish secure network connections on your equipment. It's a Cat5e (category 5e) type, which means it can transmit data at a rate of 1000Mbps (megabits per second), so you can use it to send and receive heavy chunks of data in a short time. The cable is also power over Ethernet (PoE) compatible, conveniently eliminating the need for a different power cable. Thanks to its PVC (polyvinyl chloride) outer sheath, you can rely on this cable for durability and abrasion resistance in demanding industrial environments.

Features & Benefits

• Cable length of 100m for multiple projects
• Voltage rating of 48V for use with low-voltage applications• Bare copper conductors ensure a reliable connection
• Low conductor-to-conductor capacitance of 50pF/m (picofarad per metre) for high-integrity signals
• Wide operating temperature range of -30°C to +60°C for use in harsh environments

Applications

• Horizontal building wiring
• Security cameras
• Switches and routers

What's the difference between Cat5e and Cat5 cables?

The main difference between Cat5e and Cat5 cables is their transmission speed. Cat5e cables can transmit data at ten times the speed of Cat5 cables (1000Mbps).

Standards

TIA/EIA 568B1; ISO/IEC 11801; EN 50173

1583E Cat 5 enhanced UTP PVC Cable Specifications

Cable Selection Guide
