EMV 1025S-01, Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±2 %, 44 x 21 mm, Вольтметр

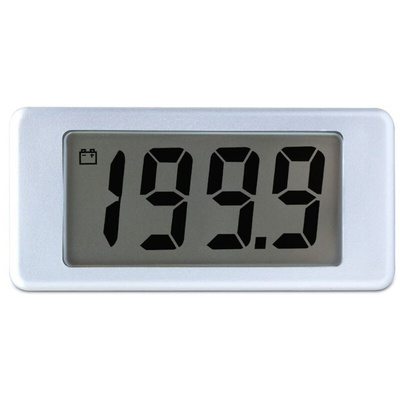

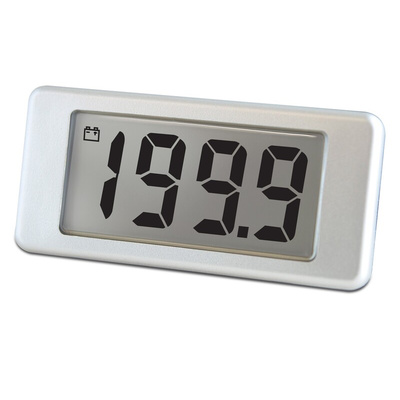

Lascar Digital Voltmeter

The Lascar digital voltmeter is an easy to mount, LCD digital panel meter. It can be installed by drilling a single, 5.5mm hole into the panel. The module is fitted to a panel by locating its screw-threaded stud through the hole. Subsequently, the washer is added followed by tightening the nut provided along with it. The connection of the module passes through the hollow stud into the target applications. Finally, a rubber seal is included, providing splashproof protection for the unit when fitted to the meter during installation. Its full-scale reading is 200mVDC and supply voltage ranging between 3.5VDC and 7VDC.

Features and Benefits

Single hole mounting
Digit height is 12.5mm(0.5in)
3-wire connection
Auto-zero
Auto-polarity
Low battery warning
Number of digits are 3.5
Operating temperature ranging between 0°C and 50°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Single Hole Mounting Meter EMV 1025S-01
