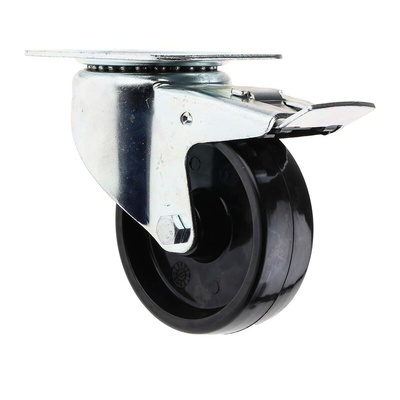

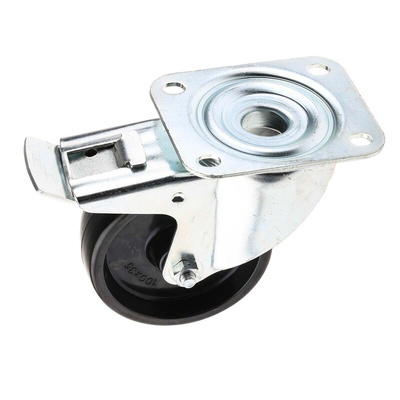

RS PRO Braked Swivel Castor Wheel, 120kg Capacity, 100mm Wheel

RS PRO Braked Swivel Castor, 120 kg Load Capacity, 100 mm Wheel Diameter

This medium-duty braked swivel castor wheel makes it easy to transfer loads from place to place. The wheel can rotate through 360 degrees, so it can travel in any direction, while the foot-operated brake pedal secures it in place.

The hub is made of phenolic resin to allow for a strong and easy roll. The wheel has a 100 mm by 80 mm fixing plate with four fixing holes to fit 8 mm screws. Each castor has a load capacity of 120 kg, so a four-wheel setup makes it easy to heavy loads around.

These wheels can function in a wide operating temperature range of -70°C to +280°C. This makes them suitable for use in challenging environments, including industrial freezers. They're ideal for use in manufacturing assembly lines, hospital beds or platform trucks.

Features and Benefits

• Braked swivel castor wheel
• Wheel material is phenolic resin
• Wheel diameter of 100 mm
• Overall height of 123 mm
• Fixing plate dimensions of 100 mm x 80 mm
• Four fixing holes for 8 mm screws
• Fixing centres of 80 mm x 60 mm
• Load capacity of 120 kg
• Operating temperature range of -70°C to +280°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
