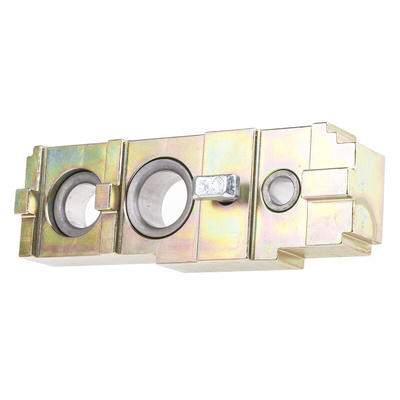

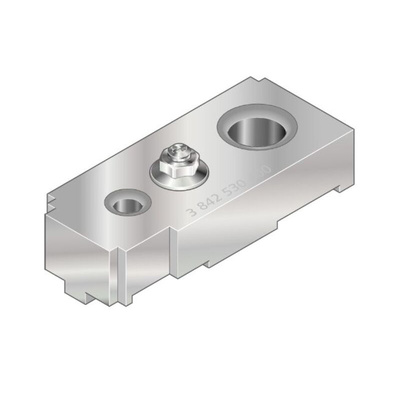

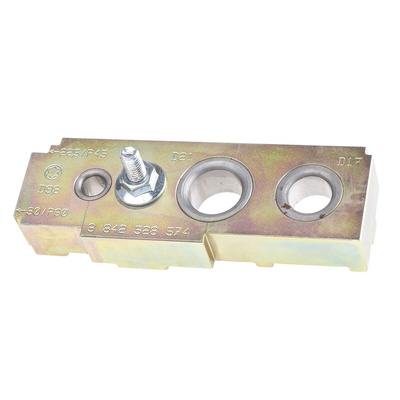

3842528574, Bosch Rexroth Galvanised Steel Drilling Jig

Bosch Rexroth Drilling Jig, 10mm Slot, For 17mm Open Diameter Fastening Holes - MGE Series - 3842528574

To say goodbye to shaky structures, step up your assembly game with this drilling jig from Bosch Rexroth. It gives you easy-to-use guides that make boring holes a walk in the park. The jig suits 45mm and 60mm strut profiles, so it's versatile and suitable for builds that need reliable strength and stability.

• Treated galvanised steel is durable and corrosion-resistant for long-lasting and reliable performance
• Works seamlessly with the rest of the MGE product system

Applications

• Construction plants
• Automotive production
• Oil and gas industry

How do I use this drilling jig?

To use this jig, put it in place with the flat side against the drilling surface. When it's in the right position, use the locking mechanism to keep it in place. From there, it's a simple matter of using the holes to get a straight and accurate drill every time.
