XCSDMC7902, Telemecanique Sensors XCS-DMC Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, 2NC, Cable, Выключатель

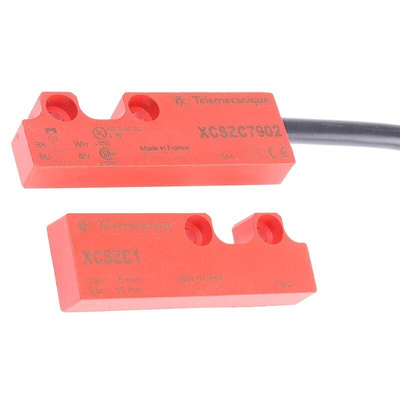

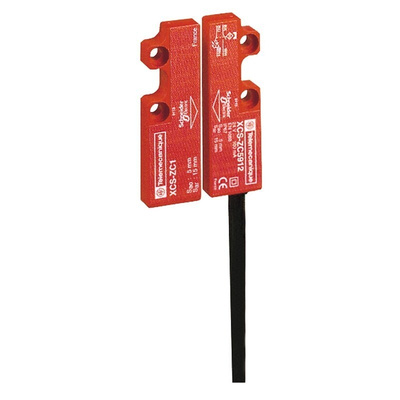

Telemecanique Sensors Non-Contact Safety Switch, Magnetic, 3 Directions - XCS-DMC Series - XCSDMC7902

For machine security and staff safety, put this pair of non-contact safety switches from Telemecanique Sensors to work. When you open a guard door or casing, the magnetic actuator withdraws, opening the staggered NC contacts and isolating power to the machine. This protects users from any moving parts while they access the area. These switches have a 5mm tolerance to door misalignment to prevent accidental shutdown. The sensors can detect approaches from three directions, meaning nothing can creep up on them unexpectedly.

Features & Benefits

• 2m cable length for flexible installation
• Electrical durability of 1,200,000 cycles for a long operating life
• IP67 rating means it's fully shielded from dust and withstands immersion in 1m of water for up to 30 minutes, so it's useful in harsh settings
• Risk of debris contamination is reduced as there's no contact between the sensor and actuator

Applications

• Heavy engineering
• Assembly lines
• Food and drink manufacturing

How big are the switches?

Each switch measures 51 (L) x 16 (W) x 7mm (D) so adds minimal bulk to your setup.

What temperatures can I use the switches in?

These switches have a wide operating temperature range between -25°C and +85°C, making them suitable for use in challenging conditions.

Coded magnetic switches Safety XCS-DMC/DMP/DMR

Coded magnetic switch xcsdmc7902

Machine Guarding and Safety Range Overview
