XPSAK361144, Schneider Electric Dual-Channel Light Beam/Curtain, Safety Mat/Edge, Safety Switch/Interlock Safety Relay, 110V ac, 3, Реле безопасности

Schneider Electric | Preventa XPSAK Series | Safety Relays

Simple and effective safety monitoring has never been more crucial in today's highly automated world. Prevention is key to site safety, that's why Schneider Electric offers a Safety Relay in the form of the 'Preventa XPSAK' module that is second to none. Being able to monitor faults with devices along a circuit has the power to stop emergency situations from even occurring.

Features and benefits:

• Provides 3 N/O safety relay outputs plus 1 N/C volt free signalling output


• Monitoring of the start button or automatic starting can be chosen.


• 24 V DC option incorporated for each supply voltage version


• Monitoring of single safety functions, providing an automated solution for use with applications such as emergency push stop buttons or switches.


• Slin in design, with just 45mm of width meaning it can fit nicely even in space constraint spaces.


• 35 mm symmetrical DIN rail support, offering flexible and versatile safety system installation.


• Local signalling in the form of LEDs.

• Impressive line resistance is available, varying between 90 to 100 Ohm (Ω).


• Input protection type is internal, electronic.


• EN1088/ISO 14119, EN 60204-1, EN/IEC 60947-5-1, EN/ISO 13850


• CSA, TUV & UL listed


• IP 40 (enclosure) for protection against small objects up to 1mm such as tools, wires and small wires.


• IP 20 (terminals) for protection against solid objects such as fingers, smaller tools up to 12mm.

Applications -

All dangerous machinery requires an automated solution to prevent harm to immediate users and also prevent damage to the machinery. Below are some of the safety applications.

• Monitoring type 4 Safety light curtains with semi-conductor outputs according to EN61496-1.


• Time delay input if needed allowing you to set up your own time function.


• Two-hand control safety circuits


• Sensing mats and edges

Standards

IEC 204-1; EN 292; EN 418; EN 60204-1; EN 1088

Approvals

BG, UL, CSA

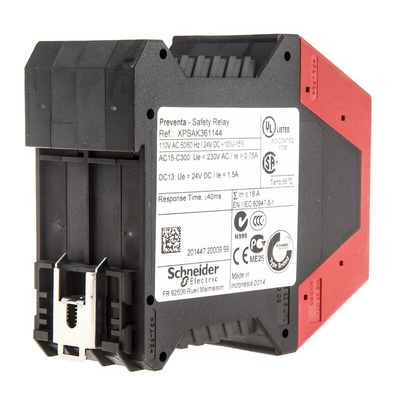

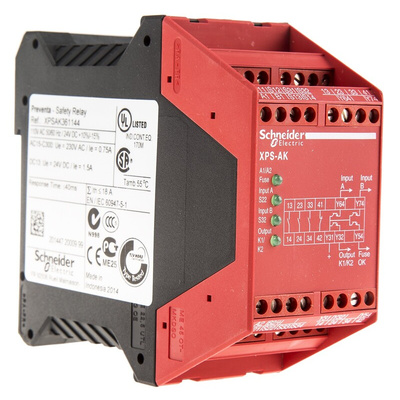

XPSAK361144 Schneider Electric Preventa Safety Relay Module.

• Preventa safety module XPSAK.


• For emergency stop, switch, sensing mat (edges), safety light curtain monitoring.


• Functions - Monitoring of electro-sensitive protection equipment (ESPE), Monitoring of a movable guard associated with 2 switches and automatic start, Monitoring of a movable guard, Multiple emergency stop monitoring 2-channel wiring, Emergency stop with 2 NC contacts monitoring 2-channel wiring, Sensing mat and edges monitoring, Proximity sensor monitoring, Emergency stop monitoring 1-channel wiring.


• Captive screw clamp terminals.


• 3 NO (volt free).


• 1 NC + 4 - Solid state output additional circuit.


• Frequency 50/60 Hz.


• Supply voltage 24 V dc.


• Time between inputs Unlimited (manual start), 2 or 4 s depending of wiring (automatic start).


• Maximum power consumption 6 VA AC.


• Breaking 180 VA holding AC-15 C300 relay output, 1800 VA inrush AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output.


• Minimum output current 10 MA (relay output).


• Minimum output voltage 17 V (relay output).


• Response time 40 Ms (input open).


• 4 LEDs.


• Mounting 35 mm DIN rail.


• Net weight 0.4 Kg.

XPSAK361144 Standards.

• EN/ISO 13850, EN 1088/ISO 14119, EN/IEC 60947-5-1, EN/IEC 60204-1.

Certification.

• CSA, UL, TUV.

CSA 44087

UL E164353
