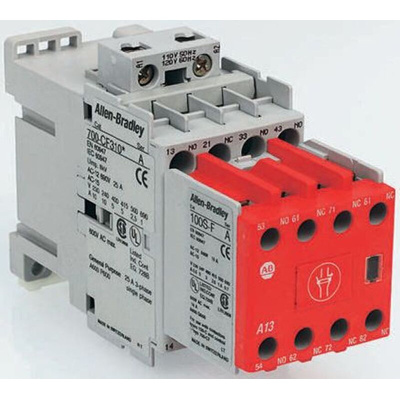

100S-C16KF23C, Allen Bradley 100S-C Series Contactor, 230 V ac Coil, 3-Pole, 16 A, 5NO + 3NC, 525 V ac, Контактор

4226420
Номер производителя: 100S-C16KF23CПроизводитель: Allen Bradley
Цена за шт.
31812.30 руб. (С НДС) *

Срок поставки: 7-9 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

100S-C, 3 Pole Safety Contactors 2N/O & 3N/C

The Bulletin 100S-C safety contactors provide mechanically linked positively guided contacts, required in feedback circuits of modern safety applications. The mechanically linked N.C. auxiliary contacts will not change state when a power pole welds. In addition, the gold-plated bifurcated auxiliary contacts are ideally suited for low-energy applications or feedback control circuits with multiple series-connected N.C. auxiliary contacts.

Redundant contactors to isolate motor (hazardous motion)
Positively guided main contacts
Red contact housings for easy identification as safety device
Protective cover prevents manual operation - yet the window allows visible ON/OFF status

Note

DC versions incorporate a diode protection circuit

Allen Bradley Contactor, Safety, 5 Auxiliary Contacts - 100S-C16KF23C

For reliability in your industrial safety applications, use this Allen Bradley contactor from Rockwell Automation. It switches an electrical circuit on and off, so you can control the function of devices like safety doors and machine guards. Thanks to contacts that open and close rapidly, the device is able to minimise the risk of equipment damage caused by electrical arcs. Its protective cover prevents unauthorised tampering, so you can be sure of proper function. A window lets you easily know if the component is on or off, while red contact housing makes it easy to identify as a safety device.

• Wide operating temperature range of -25°C to +60°C, so compatible with demanding environments
• Screw terminals for simple and secure electrical connections that need minimal maintenance
• Compact size of 81 (L) x 45 (W) x 119.5mm (D) for packing efficiency on a circuit board
• Positively guided contacts that can never be closed at the same time, for safety

Standards and Certifications

• IEC
• UL
• CSA
• EN

Can I mount auxiliary contacts to this device?

Yes, this device is designed to accept up to five front-mounted auxiliary contacts.

Safety Contactor

Техническая спецификация
pdfContactors - Bulletin 100-M, 100-C, 104-C, 100S-C, 104S-C, CAB6, 100-G - Data Sheet
pdfSafety Contactors & Safety Control Relays
pdfMachine Guarding and Safety Range Overview
Глубина:
119.5мм
Длина:
81мм
Катушка напряжение:
230 В перем. тока
Количество вспомогательных контактов:
5
Количество полюсов:
3
Конфигурация вспомогательных контактов:
2NO + 3NC
Конфигурация полюса и сброса:
3P
Номинальное напряжение контакта:
525 В перем. тока
Номинальный ток контакта:
16 A
Нормальное состояние конфигурации:
5NO + 3NC
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-25°C
Серия:
100S-C
Тип клеммы:
Винт
Функция:
Safety
Ширина:
45мм
