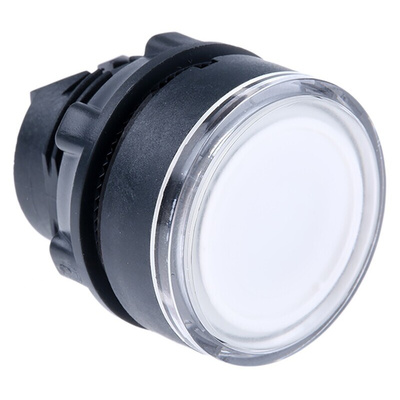

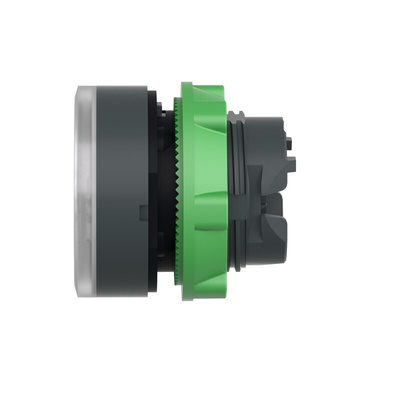

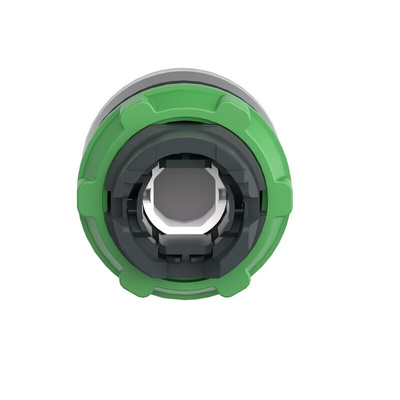

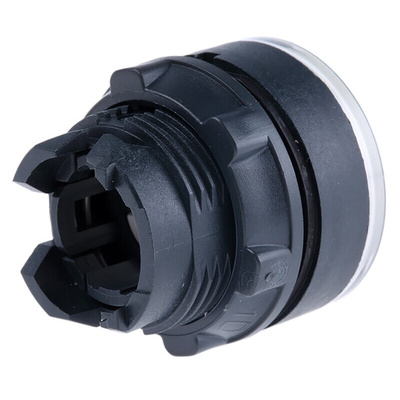

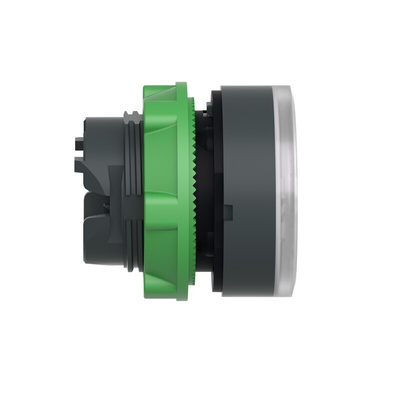

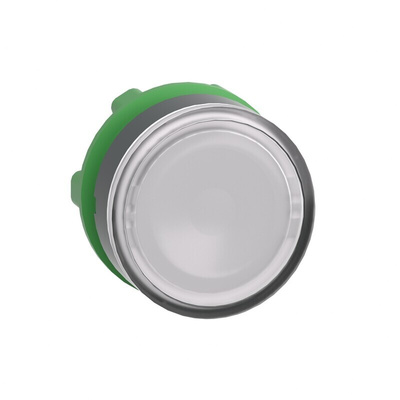

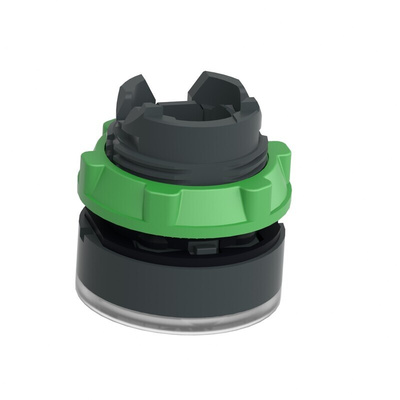

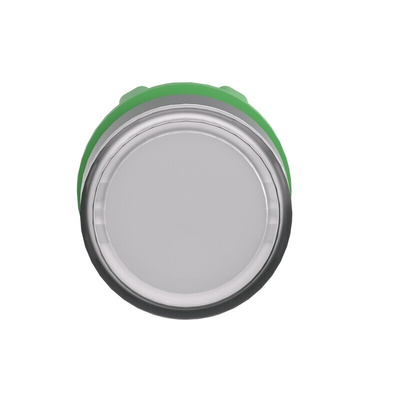

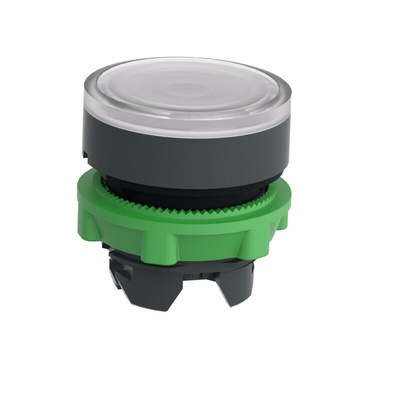

ZB5AW313, Schneider Electric ZB5 Series White Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69K

Illuminated Heads for Spring Return Pushbuttons

XB5 series illuminated heads for spring return push buttons.

Flush type round heads for spring return illuminated pushbuttons
Can be used with XAL control stations

Standards

IEC, JIS

Approvals

UL, CSA

Schneider Electric Push Button Head, Round Face, Flush Mounting - Harmony XB5 Series - ZB5AW313

Get to grips with your machinery controls using this push button head from Schneider Electric. With its white illumination, it clearly signals its switch status to keep workers in the know. The unit bounces back to reliably prepare for the next press every time, thanks to its handy spring-return mechanism. Building a control system with the component is no trouble as it simply snaps onto a contact block (609-3165). As the product mounts flush to its surface, it's a sure fit for panels in tight workspaces.

Features & Benefits

• Lifespan of 10 million mechanical cycles, providing long-lasting machine control
• IP69K rating, standing up to dust and high-pressure water jets
• 22mm cutout to fit onto regulation panels
• Plastic bezel for effective electrical insulation
• Supports control station (330-8420) mounting for versatility

Applications

• Manufacturing facilities
• Industrial automation
• Platform elevation control
• Food and beverage production

Why should I use a white light on my control panel?

White lamps generally shine bright with a long effective range, making them a reliable choice for long-distance signalling. They're also useful for guiding workers to wall-mounted controls in areas with low visibility.

UL E164353
