Contact Blocks
Faston fitting

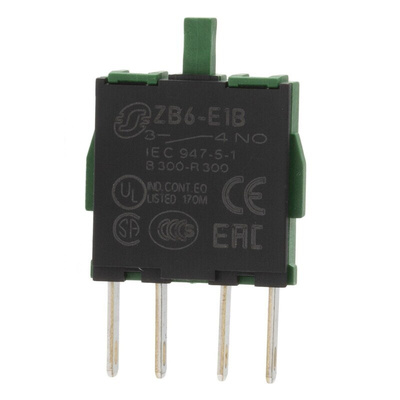

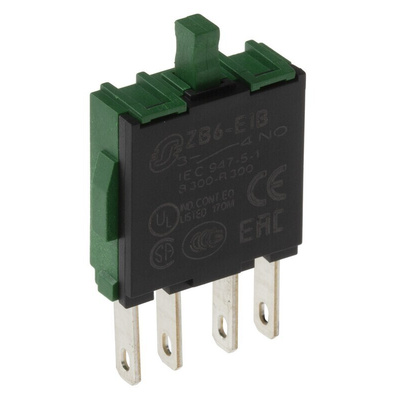

Schneider Electric | Harmony XB6 Series (ZB6) | Contact Blocks & Light Blocks
Introducing the Harmony XB6 series of Contact Block by Schneider Electric. Specifically, the ZB6 range offers you reliability when you most need it. Tested under stringent scenarios & environments, the ZB6 range works incredibly well in many different scenarios and settings.
Features and benefits
• 1 NO contact type with <=250 V rated insulation voltage.
• 6 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 providing you with excellent short-circuit protection to all surrounding components and users.
• 5,000,000 cycles of mechanical durability offering reliable, robust performance over a significant life span.
• Lightweight, easy to fit and configure. Easily removable and adjustable. Front mounting.
• Operating temperature of between -25 to 70 °C. Check the datasheet for further information.
• Schneider Green Premium product as standard across the XB4 Contact block range. Environmentally friendlier than alternatives, easy to dispose of safely.
• 18 month warranty period with Schneider Electric.
Protection ratings -
• IP65 conforming to IEC 60529 (protection against dust & water sprays from different directions)
• EN/IEC 60947-1, 60947-5-1 & 60947-5-4.
• UL 508 & CSA C22.2 No 14.
• Vibration resistance +/- 3 mm conforming to IEC 60068-2-6
• Shock resistance to 30/50gn dependant on the duration (see datasheet for spec).
Applications -
• Used in conjunction with push buttons, signal controllers.
• Applicable uses within machine, chemical or marine applications
Approvals
UL; CSA
Schneider Electric ZB6 Harmony 16mm
A range of IP65 protected components which are easily and quickly mounted in 16mm diameter holes. Each component can be ordered separately to build the required device. Also available are contact blocks with slow-break positive opening contacts with ’Faston’/solder connections. Rating Ue 250Vac, Ie 1.5A; Ue 250Vdc, Ie 0.1A, Io A Ith operating temp. -25 to +70°C.
Техническая спецификация
Harmony Style 16 Range - CharacteristicsHarmony Style 16 Range - DimensionsHarmony Style 16 Range - GeneralHarmony Style 16 Range - Sub-assemblies & HeadsUL E164353DatasheetProduct Environmental Profile| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
