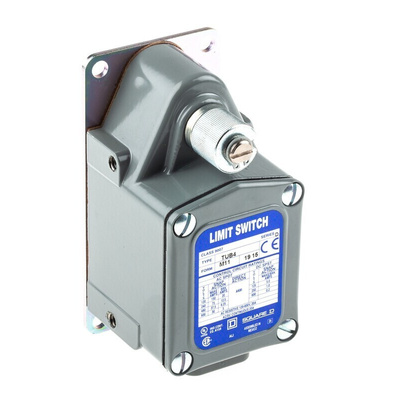

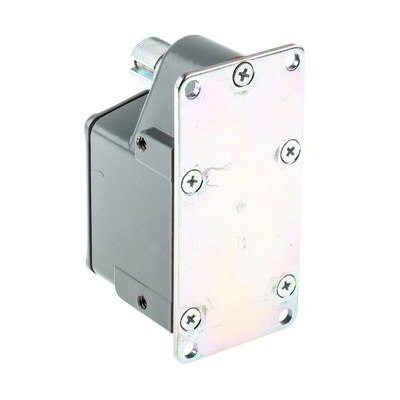

9007TUB4M11, Telemecanique Sensors 9007 Series Lever Limit Switch, NO/NC, IP66, SPDT, Die Cast Zinc Housing, 600V ac Max, 150A Max

Square D TUB Limit Switches, IP66

Universal switch adjustable to 11 different operating sequences
Robust, heavy duty switch
Heavy duty lever arms available
Suitable for heavy duty applications eg, quarries, railways, heavy duty handling equipment
Bottom entry
M20 conduit entry

Note

The limit switch requires one of the lever arm actuators listed.

Standards

VDE0660, IEC947-5-1

Approvals

UL, CSA

Telemecanique Sensors Limit Switch, SPDT Configuration, 1.13kg Weight - 9007 Series - 9007TUB4M11

Need a cutting-edge tool to make or break an electrical connection? Choose this limit switch from Telemecanique Sensors. It's a snap-action lever so it has a consistent actuation force, delivering a high degree of repeatability for efficient operations. A durable die-cast zinc body means this unit's protected against wear and tear in demanding settings. Thanks to compact dimensions of 57.15 (W) x 118.36 (H) x 62mm (D), this product slots comfortably into tight spots.

Features & Benefits

• Screw clamp terminals mean it's simple to install with just a screwdriver
• Rotary head is easy to operate
• Wide operating temperature range between -23°C and +85°C so it's suitable for harsh environments
• IP66 rating means it's protected against high-pressure water jets for applications subject to washdown
• Silver-flashed copper contacts deliver high conductivity for reliable performance

Applications

• Manufacturing processes
• Agricultural equipment
• Mining operations
• Robotics systems
• Medical devices

What's the maximum current this limit switch can handle?

This limit switch withstands a maximum current of 150A, making it suitable for high-powered applications.

Can I use this switch in dusty environments?

Yes – the unit has an IP66 rating, which means it's completely shielded from dust.
