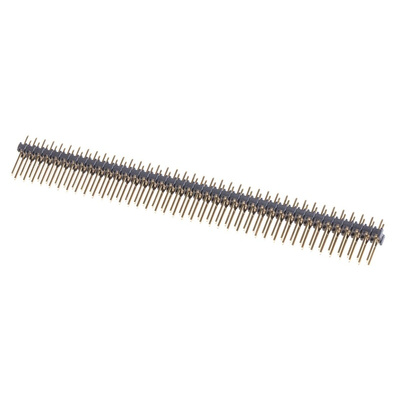

613080264421, Stelvio Kontek, 473, 80 Way, 2 Row, Straight Pin Header

4232879
Номер производителя: 613080264421Производитель: Stelvio Kontek
Цена за шт. (норма упаковки 5 шт)
1251.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Divisible Strip Headers

From Stelvio Kontek, these Divisible Strip Headers are a great way to connect insulated wiring to printed circuit boards. Available in either right angled or straight versions, and in single or double row strips, these divisible strip headers can be cut down to suit the requirements of a connection.

Secured with black GF thermoplastic, the strip headers have an operating temperature of -55°C to +125°C and an insulation resistance of 10⁴ MΩ minimum.

Stelvio Kontek Divisible Strip Headers also feature:
• Rec. Hole dia 1.0mm
• 20N insulation contact holding force
• Contact Plating: 0.2μm of gold on 1.27μm of nickel

Standards

HE13, IEC 603-8

2.54mm Kontek Comatel HE13 IEC603-8 Range

Gold plated board to board/board to wire interconnection system

Защищенный/Незащищенный:
Unshrouded
Кол-во контактов:
80
Количество рядов:
2
Концевая заделка:
Припой
Материал контактов:
Фосфорная бронза
Номинал тока:
4.0A
Ориентация корпуса:
Прямой
Серия:
473
Тип монтажа:
Сквозное отверстие
Шаг:
2.54мм
