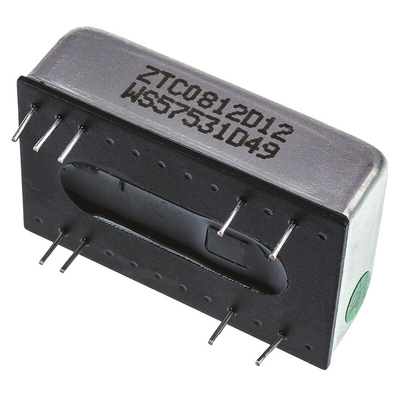

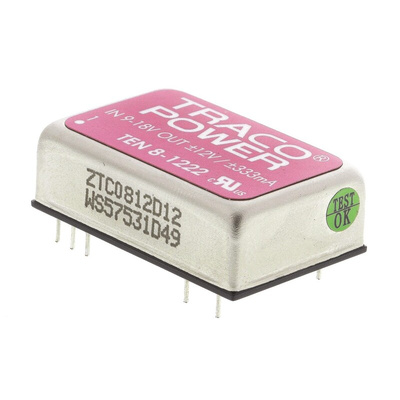

TEN 8-1222, TRACOPOWER TEN 8 DC-DC Converter, ±12V dc/ ±335mA Output, 9 → 18 V dc Input, 8W, Through Hole, +85°C Max Temp, Преобразователь

Traco 7.5W & 8W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 8 Series

The Traco Power TEN 8 series is a range of isolated, 8 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of -40°C to +85°C. The full SMD design of these high performance DC-DC converters guarantees high reliability. The TEN 8 series comes with built-in EMI input filter and complies with EN 55022 Class A. Ideal applications of these DC-DC converters are in battery operated equipment, industrial process control systems, tele-data communication and any other application requiring isolated, tightly regulated voltages and space is limited on the PCB.

DIP–24 package with industry standard footprint
Wide 2:1 input voltage range
Input filter meets EN 55022, class A
Extended operating temperature range: -40°C to +85°C
Remote On/Off
Shielded metal casing with insulated baseplate
Lead free design, RoHS compliant

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Approvals

UL/cUL

Traco Power TEN 8 Series DC-DC Converter, 87% Efficiency, Through Hole Mount - TEN 8-1222

This Traco Power DC-DC converter with a 12V input and DIP 24 package is a high efficiency solution designed for various industries. With features like isolated design and dual output capabilities, this converter provides reliable power conversion in a compact form factor.

Features & Benefits

• Wide input voltage range allows for flexibility in different applications
• Isolated design ensures safety and protection for sensitive electronics
• High efficiency provides optimal power conversion with minimal energy loss
• 8W power rating offers sufficient power for various devices
• Through hole mounting provides simple installation process for PCB integration
• Dual output capability provides versatility in powering multiple components

Applications

• Battery operated equipment
• Instrumentation devices
• Communication systems
• Industrial electronics

What is the isolation voltage of the TEN 8-1222?

The converter has an isolation voltage of 1.5 kV.

What is the input voltage range for the TEN 8-1222 converter?

The input voltage range for this converter is 9-18 VDC.

What is the maximum output power of the TEN 8-1222?

The maximum output power of this converter is 8 watts.

Approvals

EN60950; UL1950

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
