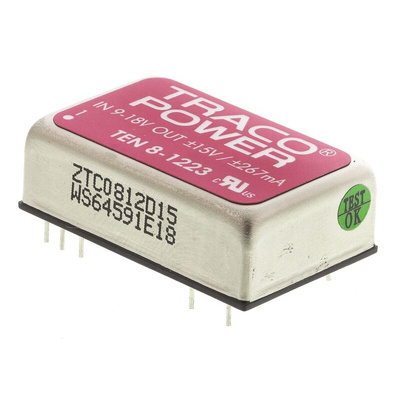

TEN 8-1223, TRACOPOWER TEN 8 DC-DC Converter, ±15V dc/ ±265mA Output, 9 → 18 V dc Input, 8W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, Remote On-Off, 85% Efficiency - TEN 8 Series - TEN 8-1223

When high performance and reliable efficiency are essential, opt for this DC-DC converter from Traco Power. It takes any voltage from a 9 to 18V DC range and transforms it to a carefully regulated output of ±15V DC. As this is a dual-output unit, you can use it to run a pair of sensitive battery-powered devices at once. Thanks to an 85% efficiency rating, you can trust it produces very little waste heat and tolerates a broad operating temperature range from -40°C to +85°C. You can expect minimal interference from EMI, as this converter comes with an integrated filter on the input.

Features & Benefits

• Remote On-Off function gives you control from a distance
• Short-circuit protection shields you and your equipment from common current faults

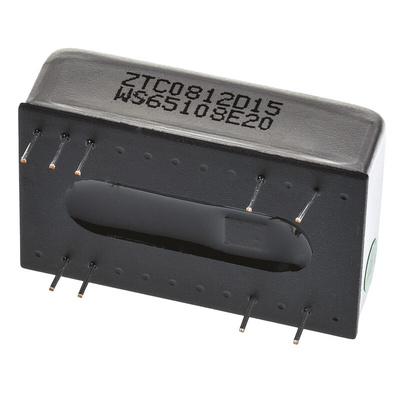

• DIP-24 format has an industry-standard pinout configuration, making it easy to link to your PCB using through-hole mounting

Applications

• Test and measurement devices
• Industrial instrumentation
• Factory automation

How safe is this converter?

With its 1.5kV DC isolation, shielded metal casing and insulated baseplate, this converter is a safe pick. It protects you and your equipment from electric shocks, spikes and EMI disturbance.

Approvals

EN60950; UL1950
