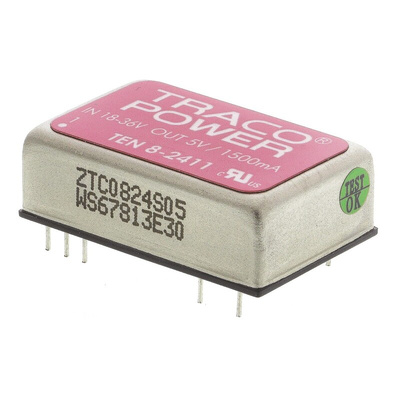

TEN 8-2411, TRACOPOWER TEN 8 DC-DC Converter, 5V dc/ 1.5A Output, 18 → 36 V dc Input, 8W, Through Hole, +85°C Max Temp -40°C, Преобразователь

Traco 7.5W & 8W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 8 Series

The Traco Power TEN 8 series is a range of isolated, 8 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of -40°C to +85°C. The full SMD design of these high performance DC-DC converters guarantees high reliability. The TEN 8 series comes with built-in EMI input filter and complies with EN 55022 Class A. Ideal applications of these DC-DC converters are in battery operated equipment, industrial process control systems, tele-data communication and any other application requiring isolated, tightly regulated voltages and space is limited on the PCB.

DIP–24 package with industry standard footprint
Wide 2:1 input voltage range
Input filter meets EN 55022, class A
Extended operating temperature range: -40°C to +85°C
Remote On/Off
Shielded metal casing with insulated baseplate
Lead free design, RoHS compliant

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Approvals

UL/cUL

TRACOPOWER 8W DC/DC Converter Module

TRACOPOWER TEN 8 series isolated 8 Watt DC/DC converters in a DIP-24 package with industry-standard footprint. The TEN 8-2411 converter modules have a 2:1 input voltage range at 18 to 36 V dc and a 5 V dc regulated output. The full SMD design of these DC-DC converters guarantees high reliability. The TEN 8 series comes with built-in EMI input filter and complies with EN 55022 class A without external components.

Features and Benefits

• Wide 2:1 input range


• Full SMD-design


• High efficiency up to 86%


• Extended operating temperature range –40°C to 85°C


• I/O isolation 1500 VDC


• Indefinite short circuit protection


• Input filter to meet EN 55022 Class A


• Shielded metal case with insulated baseplate


• 24-pin DIP with industry standard pinout

Applications

Ideal applications of these dc to dc converter modules are in battery operated equipment, industrial process control systems, tele-data communication and any other application requiring very wide operating voltage range.
