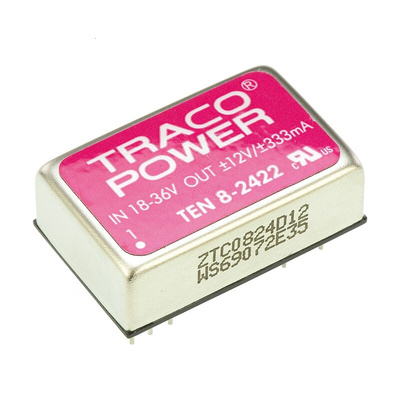

TEN 8-2422, TRACOPOWER TEN 8 DC-DC Converter, ±12V dc/ ±335mA Output, 18 → 36 V dc Input, 8W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 86% Efficiency, ±5% Load Regulation - TEN 8 Series - TEN 8-2422

Conserve your energy with this DC-DC converter from Traco Power. It takes an input voltage range from 18 to 36V DC and outputs a clean and stable voltage of ±12V DC. Through-hole mounting helps you make a robust connection with a PCB, meaning this is a smart choice for setups where vibration is likely. A double output means you can use it to drive two devices, which streamlines your system. An isolation voltage of 1500V DC protects downstream devices from power spikes on the supply side.

Features & Benefits

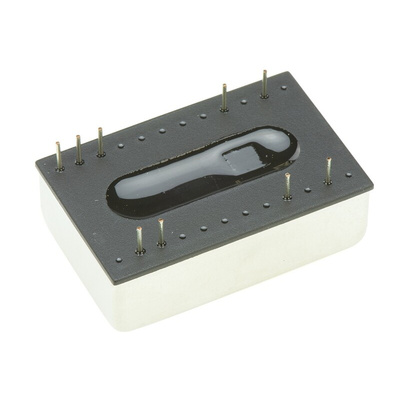

• Housed in a compact industry-standard DIP-24 package measuring 31.8 (L) x 20.3 (W) x 10.2mm (D) to save space on your PCB
• Load regulation of ±5% means you get a steady output voltage despite fluctuations in the power demand of the load
• Performs effectively in challenging settings, thanks to a wide operating temperature range between -40°C and +85°C
• Remote on/off function for convenience

Applications

• Construction industry
• Medical equipment
• Factory automation

Is this unit shielded?

Yes. The DC-DC converter is housed in a shielded metal casing with an insulated baseplate to protect against EMI.

Approvals

EN60950; UL1950
