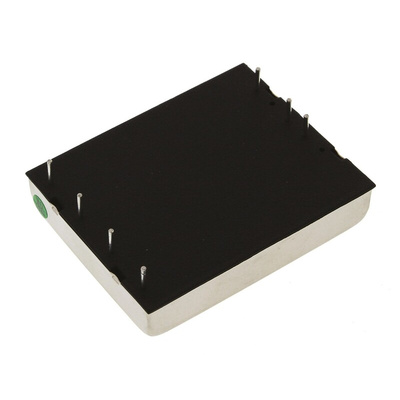

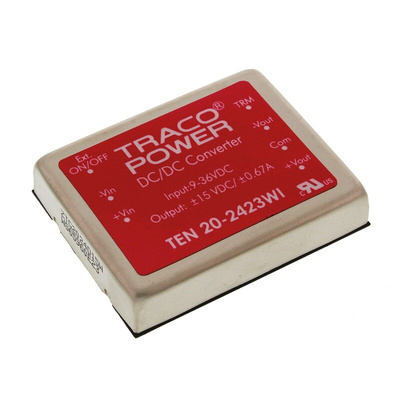

TEN 20-2423WI, TRACOPOWER TEN 20WI DC-DC Converter, ±15V dc/ ±665mA Output, 9 → 36 V dc Input, 20W, Through Hole, +85°C Max, Преобразователь

Traco 20W Single/Dual Output Regulated Isolated DC-DC Converter - TEN 20WI Series

20W single/dual output regulated isolated high performance DC-DC converter modules with a high input voltage range and low profile package. These regulated isolated high performance DC-DC converter modules have a high efficiency which allows an operating temperature range of -40°C to 85°C. Typical applications for these DC-DC converter modules include battery operated equipment and distributed power architectures in communication and industrial electronics.

Products not recommended for new designs please refer to the alternative at the bottom of the page
Ultra-wide 4:1 input voltage range
Adjustable output voltage (±10%)
Remote on/off
Input filter to meet EN 55022 Class A and FCC Level A without external components
Continuous short circuit protection
Shielded metal case with insulated base plate
Industry standard pinout

Note

Derating above 42°C.

Standards

UL 1950, EN 60950, IEC 60950 compliance up to 60 VDC input voltage

Approvals

UL recognised

Approvals

UL Recognised; EN 60550; UL 1950
