ML30.100, PULS MiniLine MLY Switch Mode DIN Rail Panel Mount Power Supply 100 → 240V ac Input Voltage, 24V dc Output, Блок питания

PULS DIN Rail Power Supply

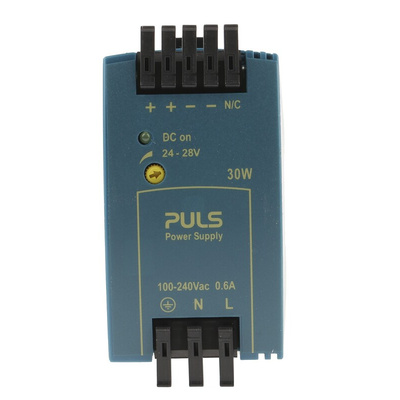

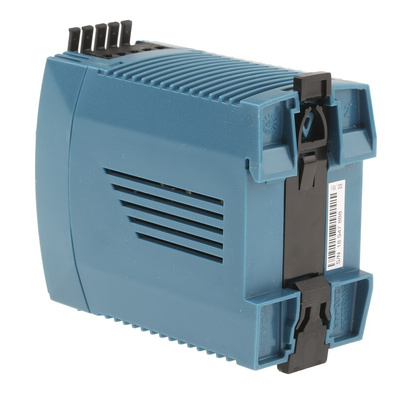

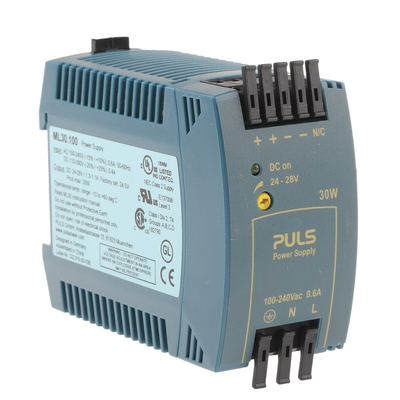

The PULS MiniLine MLY series single-phase DIN-rail switch-mode power supply has an adjustable output voltage ranging between 24VDC and 28VDC (adj. by front panel potentiometer) with 1.3A current. This cost-optimised power supply specifically designed with uncompromised quality and reliability for high-performance. This unit is equipped with an input voltage range switching between 100VAC and 240VAC. It has a robust plastic housing with a fine ventilation grid. It has high immunity to power surges as well as low electromagnetic emission
Note:
Auto range
Preset voltage with jumper fitted
Power de-rating between 60°C and 70°C

Features and Benefits

Miniature size and lightweight
Quick and easy mount
Spring clamp terminals
No neutral wire required
Efficiency is up to 87.5%
Power rating is 30W
Ripple factor and noise is 50mVpp
Overload and short-circuit protected
Output LED indicator
Operation temperature ranges between -10°C and 70°C

Applications

Industrial control
Automation
Communication and instrumentation equipment

Certifications

EN 61000-6-3
IP20 rated
VDE
SELV
UL approved
CSA certified
CB

Approvals

UL/cUL Recognised; CSA Certified

ML Series installation instructions

UL E198865

Datasheet
