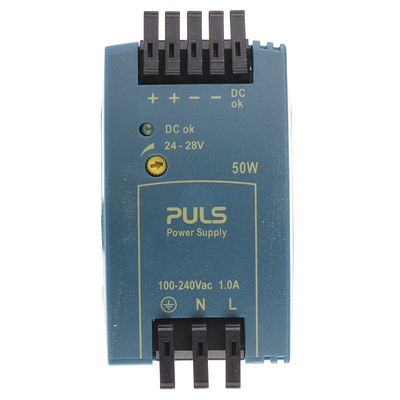

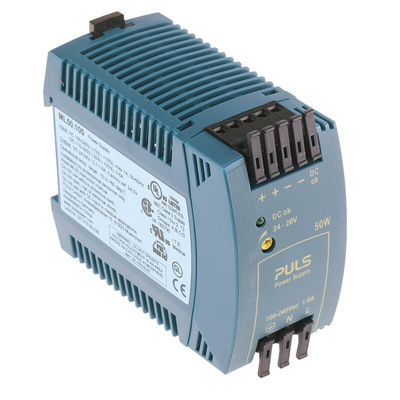

ML50.100, PULS MiniLine MLY Switch Mode DIN Rail Power Supply, 100 → 240V ac ac, dc Input, 24V dc dc Output, 2.1A Output,, Блок питания

PULS DIN Rail Power Supply

The PULS MiniLine MLY series single-phase DIN-rail switch-mode power supply has an adjustable output voltage ranging between 24VDC and 28VDC with 2.1A and 1.8A current. This cost-optimised power supply specifically designed with uncompromised quality and reliability for high-performance. This unit is equipped with an input voltage range switching between 100VAC and 240VAC/85VDC and 375VDC. It has a robust plastic housing with a fine ventilation grid. It has high immunity to power surges as well as low electromagnetic emission.
Note:
Auto range
Preset voltage with jumper fitted
Power de-rating between 60°C and 70°C

Features and Benefits

Miniature size and lightweight
Quick and easy mount
Spring clamp terminals
Efficiency is up to 89%
Power rating is 50W
Ripple factor and noise is 50mVpp
Overload and short-circuit protected
Output LED indicator
Operation temperature ranges between -10°C and 70°C

Applications

Industrial control
Automation
Communication and instrumentation equipment

Certifications

EN 61000-6-3
IP20 rated
VDE
SELV
UL approved
CSA certified
CB
NEC Class 2 Compliant

Approvals

UL/cUL Recognised; CSA Certified

UL E137006 (POWER SUPPLY)

UL E207953

ML Series installation instructions

UL E198865

Datasheet
