ML50.105, PULS MiniLine MLY Switch Mode DIN Rail Power Supply, 100 → 240V ac ac, dc Input, 48V dc dc Output, 1.05A Output,, Блок питания

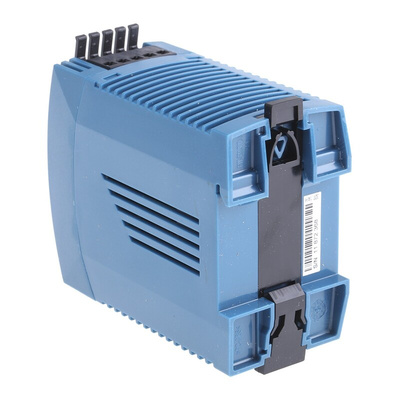

PULS DIN Rail Power Supply

The PULS MiniLine MLY series single-phase DIN-rail switch-mode power supply has an adjustable output voltage ranging between 48VDC and 56VDC with 1.5A current. This cost-optimised power supply specifically designed with uncompromised quality and reliability for high-performance. This unit is equipped with an input voltage range switching between100VAC and 240VAC/85VDC and 375VDC. It has a robust plastic housing with a fine ventilation grid. It has high immunity to power surges as well as low electromagnetic emission
Note:
Auto range
Preset voltage with jumper fitted
Power de-rating between 60°C and 70°C

Features and Benefits

Miniature size and lightweight
Quick and easy mount
Spring clamp terminals
Efficiency is up to 90%
Power rating is 50W
Ripple factor and noise is 50mVpp
Overload and short-circuit protected
Output LED indicator
Operation temperature ranges between -10°C and 70°C

Applications

Industrial control
Automation
Communication and instrumentation equipment

Certifications

EN 61000-6-3
IP20 rated
VDE
SELV
UL approved
CSA certified
CB
NEC Class 2 Listed

Approvals

UL/cUL Recognised; CSA Certified

UL E137006 (POWER SUPPLY)

UL E207953

ML Series installation instructions

UL E198865

Datasheet
