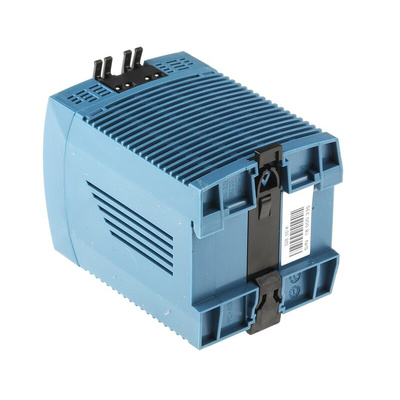

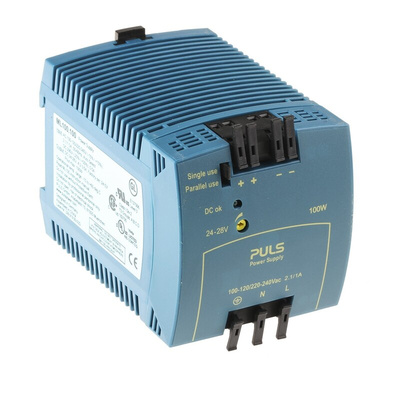

PULS DIN Rail Power Supply
The PULS MiniLine MLY series single-phase DIN-rail switch-mode power supply has an adjustable output voltage ranging between 24VDC and 28VDC (adj. by front panel potentiometer) with 4.2A and 3.6A current. This cost-optimised power supply specifically designed with uncompromised quality and reliability for high-performance. This unit is equipped with an input voltage range switching between 100VAC and 120VAC/220VAC and 240VAC. It has a robust plastic housing with a fine ventilation grid.
Note:
Auto range
Preset voltage with jumper fitted
Power de-rating between 60°C and 70°C
Features and Benefits
Miniature size and lightweight
Quick and easy mounting onto a 35mm DIN-rail
Spring clamp terminals
Wide range auto select input
Efficiency is up to 90%
Power rating is 100W
Ripple factor and noise is 50mVpp
Adjustable to a parallel mode for load sharing
Overload and short-circuit protected
Output LED indicator
Operation temperature ranges between -10°C and 70°C
Applications
Industrial control
Automation
Communication and instrumentation equipment
Certifications
EN 61000-6-3
IP20 rated
VDE
SELV
UL approved
CSA certified
CB
Approvals
UL/cUL Recognised; CSA Certified
