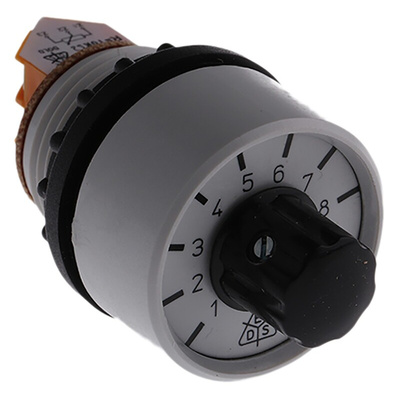

Dold 10kΩ Rotary Potentiometer 1-Gang Panel Mount, AD3 10kOHM, Потенциометр

MK 7850N — Multi-Function Timer Relay

A choice of Dold multi-Function Timer Relay's with optional external potentiometer accessory also available at 10 KΩ

Features:

LED as adjustment aid for time selection
8 time ranges from 0.02 s → 300 h selected via rotary switch
Expanded voltage range AC / DC 12 → 240 V
2 changeovers, 1 of which as immediate contact
Control contact, electrically isolated
Box terminals

8 functions selected via rotary switch

Response delay (AV)
Switch-on wipe function (EW)
Emitter delayed (IE)
Flashing function, starting with pulse (BI)
Fallback delay (RV)
Pulse transducer (IF)
Switch-off wipe function (AW)
Response and fallback delay (AV / RV)

Additional with MK 7850N / 500

Timer, starting with pause (TP)
Switch-on and switch-off wipe function (EW / AW)
2 separately adjustable times
Connection option for 2 remote port.

Note

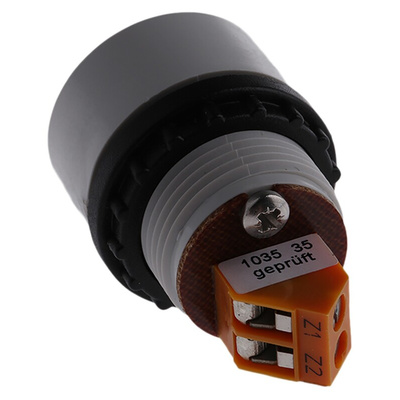

Remote potentiometer with terminals Z1, Z2 sold separately, see RS code: 4249928
