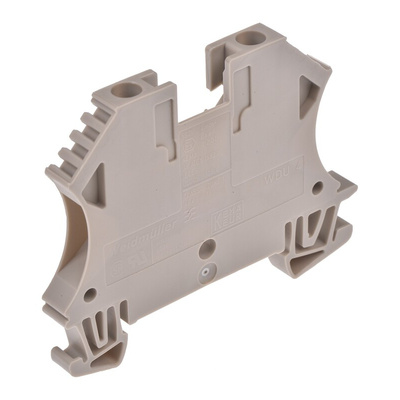

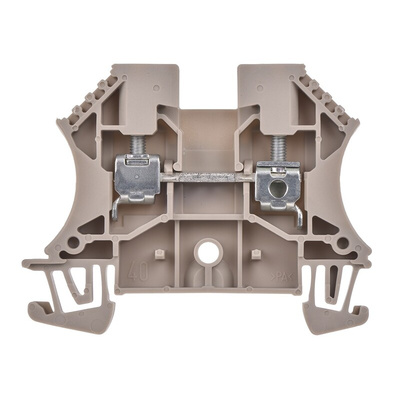

1781730000, Weidmuller WDU Series Dark Beige DIN Rail Terminal Block, 4mm², Single-Level, Screw Termination, ATEX

Terminal Kits

Kit 1 – qty 10 of stock no.425-190
Kit 2 – qty 10 of stock no. 425-207
Kit 3 – qty 10 of stock no. 425-213
Kit 4 – qty 10 of stock no. 425-229
RS Stock 425-4267 - is a Terminal Kit of 13 pieces
425-4295 contains 5 terminals, an end plate and 2 end stops
425-4289 is provided in 1 kit of 10 pcs

Convenient kits available containing single size WDU terminals in sizes 2.5mm, 4mm, 6mm, and 10mm
An end plate (stock no. 425-291)and two end stops (stock no. 295-9140) are also included in each kit
Voltage rating 800V

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Weidmuller DIN Rail Terminal Block, Single-Level, 32A Current Rating - WDU Series - 1781730000

Looking to protect devices on your DIN rail from electrical hazards? Choose this DIN rail terminal block from Weidmuller. In the event of a current surge or short circuit, it shields your equipment from damage. Thanks to its current rating of 32A, you can reliably use it in your high-power electrical systems. For versatility, this single-level component features two connections so you can easily set up a dual-wiring structure. Mounting is fast as it simply snaps onto your rail, eliminating the need for special tools.

Features & Benefits

• Low power loss of 1.02W for energy efficiency
• Wide operating temperature range between -60°C and +130°C for use in harsh industrial environments
• Screw terminals for secure wiring

Applications

• HVAC systems
• Lighting fixtures
• Telecommunications
• Energy industry
• Medical facilities

What's this terminal block made from?

The housing of this DIN rail terminal block is made from Wemid, which delivers good thermal resistance for use in demanding conditions. It has flame-retardant properties for safety in the event of a fire. This material also effective insulation to help prevent electric shock.

Approvals

CSA Certified; UL Listed; SEV; DEMKO; SEMKO; NEMKO; Lloyds Register of Shipping; SETI; KEMA; Reg of USSR; EEx’e; EEx’I’ Acceptance

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
