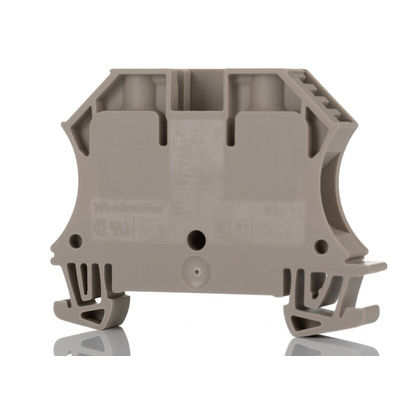

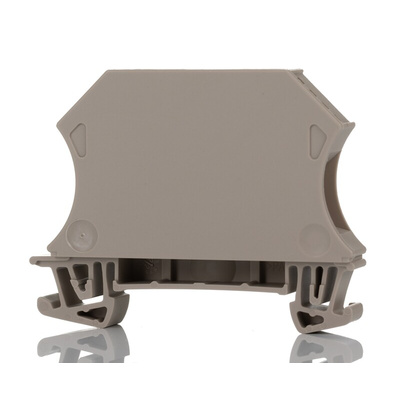

1781750000, Weidmuller WDU Series Dark Beige DIN Rail Terminal Block, 10mm², 1-Level, Screw Termination, ATEX

Weidmuller DIN Rail Terminal Block, Wemid Material, 57A Current Rating - WDU Series - 1781750000

Need a reliable middleman to link cables to your industrial equipment? Look no further than this DIN rail terminal block from Weidmuller. It features an innovative clamping yoke technology that ensures that conductors are held firmly in place, even in vibrating systems. The component's Wemid housing does double duty, as it provides both impact resistance and insulation to prevent damage and electric shocks. Thanks to a current rating of 57A, this block is suitable for use in high-power applications. It clips directly onto your DIN rail, so you can install it in a jiffy without any tools.

Features & Benefits

• Simple screw termination method for speedy wiring
• Safe to use in demanding settings, thanks to a wide operating temperature range between -25°C and +55°C
• Stops burning in 10 seconds or less for safety in the event of a fire
• Low power loss of 1.82W for energy efficiency

Applications

• Transportation industry
• Plant automation
• Machine building

How large is this terminal block?

This piece of kit has compact dimensions of 60 (H) x 9.9 (W) x 46.5mm (D), so it helps you maximise space on your DIN rail.

Approvals

CSA Certified; UL Listed; SEV; DEMKO; SEMKO; NEMKO; Lloyds Register of Shipping; SETI; KEMA; Reg of USSR; EEx’e; EEx’I’ Acceptance

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Datasheet - WDU 10 PACK -1781750000
