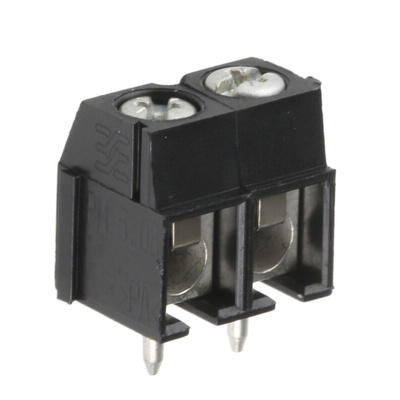

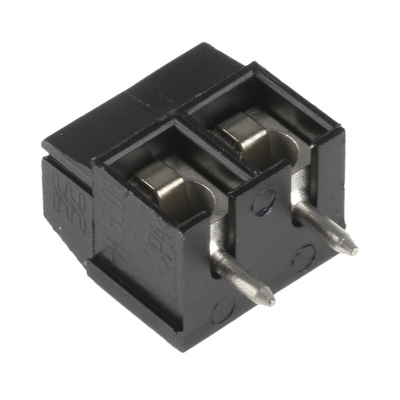

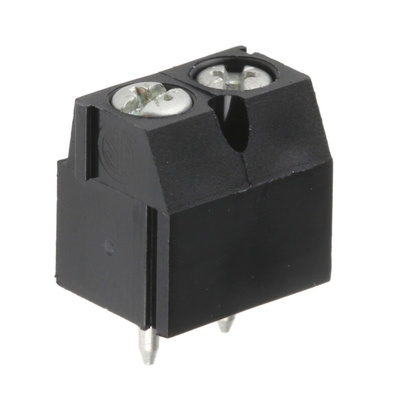

1760510000, Weidmuller PM 5.08 Series PCB Terminal Block, 2-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw Termination

Weidmuller OMNIMATE PM Series 5.08mm PCB Terminal Blocks

OMNIMATE PM Series PCB terminal blocks with a 5.08mm pitch and side interlocking. These OMNIMATE 5.08mm PCB terminal block connectors have an M2.5 leaf spring screw clamp connection which accepts a wire size range of 26 to 14 AWG and a black UL 94 V-0 Wemid (PA) insulator.

Weidmuller PCB Terminal Strip, 1.674g Weight, 600V Voltage Rating - PM 5.08 Series - PM 5.08/02/90 3.5SN BK BX - 1760510000

End your connection issues with this PCB terminal strip from Weidmuller. A generous 5.08mm pitch offers plenty of room to play with wiring sizes between 0.13 and 2.5mm², making it a versatile piece of kit. Copper-tin contacts make electricity flow with minimal resistance for efficient energy transfer. At only 1.674g, it's a lightweight component that doesn't add unnecessary strain to your existing setup. You don't need to be a bright spark to install this unit on your PCB, thanks to its simple solder connection style.

Applications

• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• Self-extinguishing construction for safety in the event of a fire
• Wemid material is resistant to heat and impact for durability
• Voltage rating of 600V for use in medium-duty systems

Applications

• PCBs
• Industrial energy supplies
• Power distribution

Can I use this device in challenging settings?

Yes, a broad operating temperature range between -50°C and +120°C makes this terminal strip a suitable option for use in hazardous conditions.

Approvals

VDE; UL; CSA
