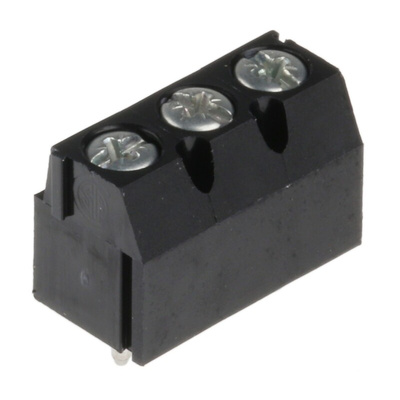

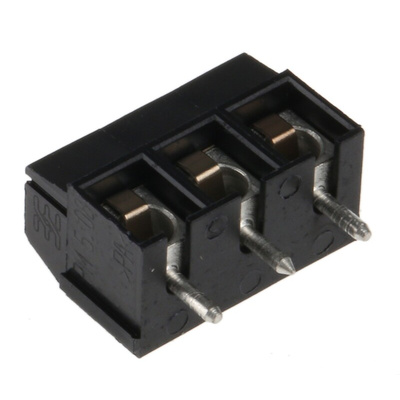

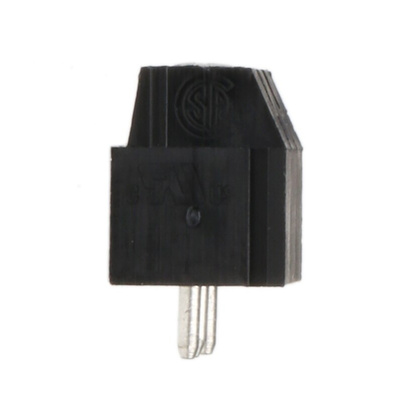

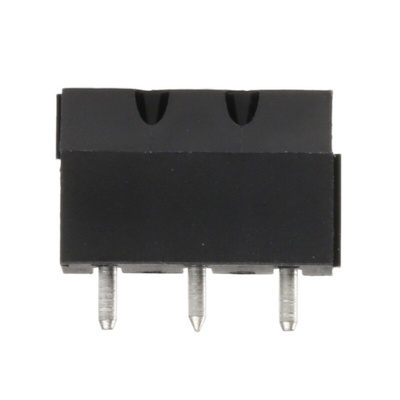

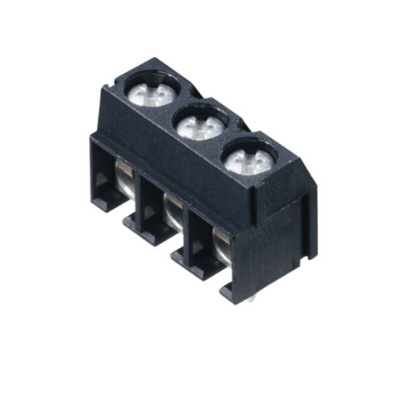

1760520000, Weidmuller PM 5.08 Series PCB Terminal Block, 3-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw Termination

Weidmuller OMNIMATE PM Series 5.08mm PCB Terminal Blocks

OMNIMATE PM Series PCB terminal blocks with a 5.08mm pitch and side interlocking. These OMNIMATE 5.08mm PCB terminal block connectors have an M2.5 leaf spring screw clamp connection which accepts a wire size range of 26 to 14 AWG and a black UL 94 V-0 Wemid (PA) insulator.

Weidmuller PCB Terminal Strip, 5.08mm Pitch, Nylon Material - PM 5.08 Series - PM 5.08/03/90 3.5SN BK BX - 1760520000

Need a device to finish off your PCB wiring in style? Choose this male PCB terminal strip from Weidmuller for the job. Its straight body orientation means it slots neatly into your board to optimise packing space. The unit has three contacts, helping to boost your connection potential. A pitch size of 5.08mm leaves plenty of room for cable installation to make set-up a painless task. Through-hole mounting creates a permanent and secure attachment that withstands high-vibration environments to avoid shaky performance.

• Screw termination method for secure wiring without the need for complex tools
• Nylon casing for resistance to abrasion and wear
• Current rating of 24A for use in demanding applications
• Compatible with wire sizes between 24 and 16AWG for versatility
• Burning stops in 10 seconds or less for fire safety

Applications

• Factory automation
• Automotive manufacturing
• Robotics systems

What are the dimensions of this product?

This item has compact dimensions of 15.84 (L) x 8 (W) x 10mm (D), so it's a space-efficient option.

Can I use this component in harsh industrial conditions?

Yes. This unit has a broad operating temperature range between -50°C and +120°C, so it's just the thing for harsh industrial conditions.

Approvals

VDE; UL; CSA
