9028740000, Weidmuller 3100 Pieces Bootlace Ferrule Crimp terminal Kit

Weidmuller PZ 6/5 Bootlace Ferrule Tool Kit

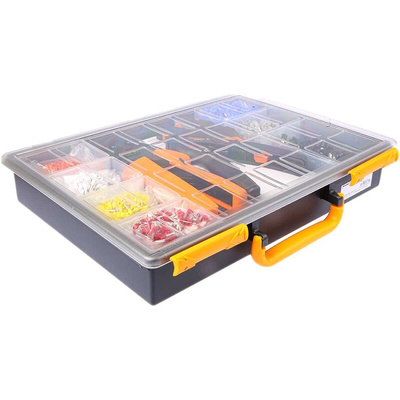

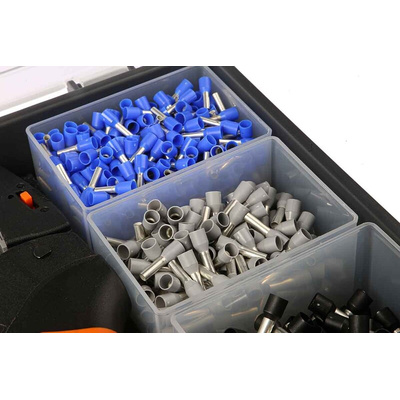

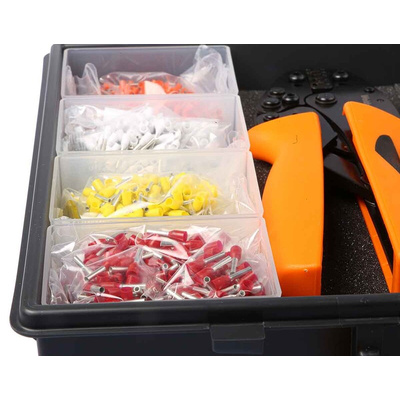

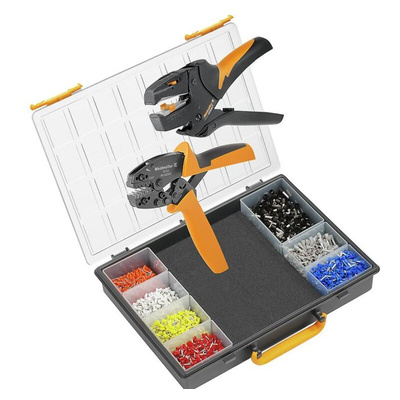

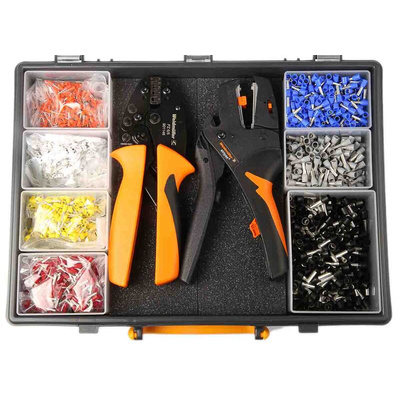

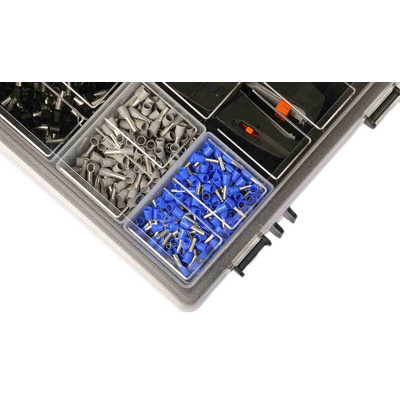

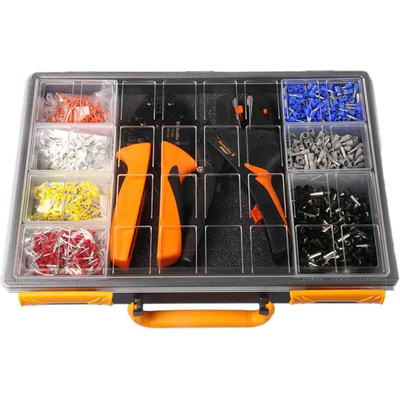

Organised tool kits reduce the time spent searching for components and preparation time. This PZ 6/5 crimp kit contains all the components for cutting, stripping, and crimping wire end bootlace ferrules up to 6mm². The toolbox has 6 x A8 size compartments and 1 x A7 size compartments for convenient storage. These compartments contain a range of 3100 wire end ferrules with plastic colour coded collars from 0.5 to 6mm².

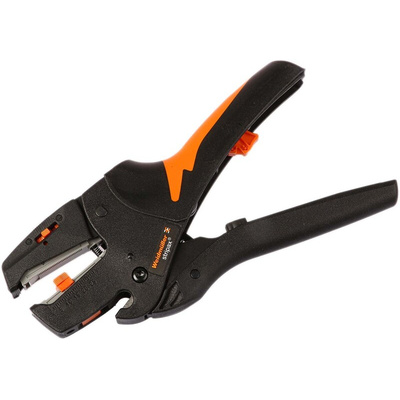

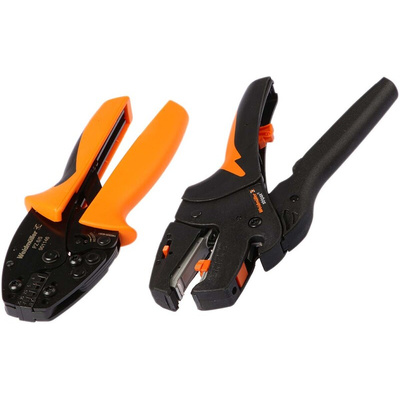

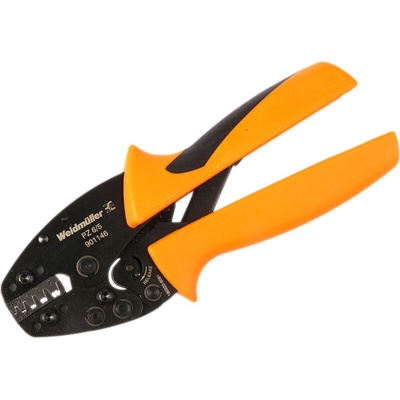

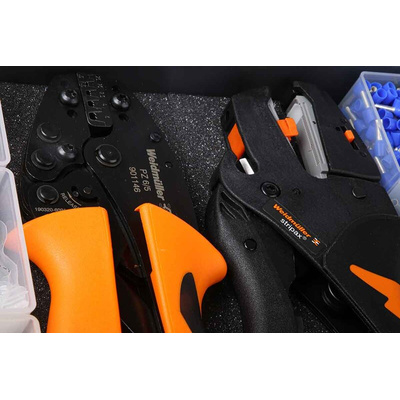

A Stripax stripping tool is included for use with conductors with PVC insulation from 0.08 to 6mm². A PZ 6/5 crimping tool is included for crimping wire end ferrules from 0.25 to 10mm². The toolbox incorporates handles so you can easily carry it around and provides you with a great range of terminal sizes ideal for everyday use.

Features and Benefits:

• 3100 assorted bootlace ferrules
• Convenient storage compartments

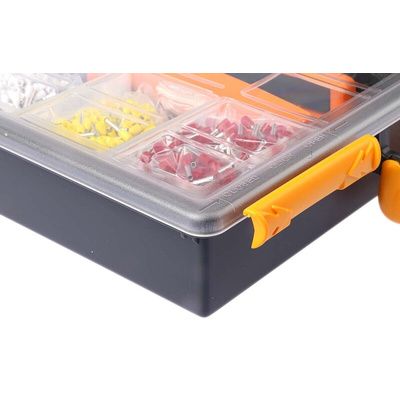

• Handles for portability
• Crimping and stripping tools included
• Dimensions (LxWxH): 261 x 338 x 57 mm
• Weight: 1,761 g

Applications:

This kit is ideal for cutting, stripping, and crimping wire end ferrules up to 6mm². Bootlace ferrules are used on multi-stranded wires that are being inserted into screw terminals and terminal blocks. Applications include consumer units, circuit breakers, electrical control panels and any equipment where there is a requirement for a multi-stranded wire connection.

Weidmuller Crimp Terminal Kit, With Stripping Tool, 0.25 to 6mm² Wire End Ferrules - 9028740000

Securely wire your industrial machinery with this crimp terminal kit from Weidmuller. As it combines a stripping tool, a crimper and ferrules in one case, it gives you easy access to essential wiring equipment. The included components work with conductor sizes between 0.5 and 6mm², making this kit a versatile choice. The crimping tool allows you to form airtight bonds to minimise the risk of corrosion damaging your conductors. With this kit, you can prepare and join your wires in a single session to save you time and effort.

Features & Benefits

• Supplied with 3,100 assorted ferrules to ensure you'll have plenty in stock
• Ferrules are colour-coded by size for ease of identification
• Designated spaces to hold tools and terminals for organised storage
• Trapezoidal crimp teeth for a firm grip on conductors
• Lightweight tools weigh under 500g each for comfortable handling during extended work periods

Applications

• PCB-mounted circuits
• Lighting systems
• Metalworking
• Control panels

Why should I use crimp connections for my wiring?

Crimped connections don't use extra substances to join your wires, leading to mechanically strong joints with long service lives.

Note

Kit contents:
1 x Stripax tool
1 x Crimp tool
500 x 0.5mm
500 x 0.75mm
500 x 1.0mm
500 x 1.5mm
500 x 2.5mm
500 x 4mm
100 x 6mm

Datasheet

Datasheet - 348900000

Catalogue - Tools
