9011460000, Weidmuller PZ6/5 PZ 6/5 Hand Ratcheting Crimp Tool for Wire Ferrules, Обжимные клещи

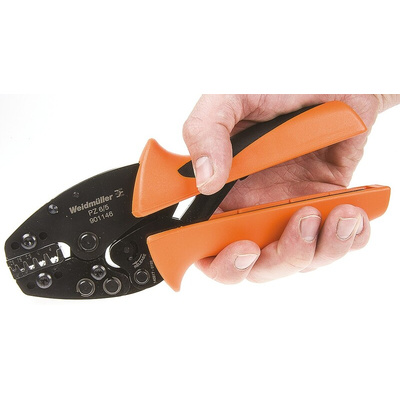

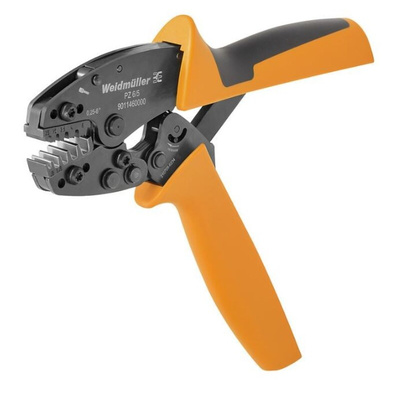

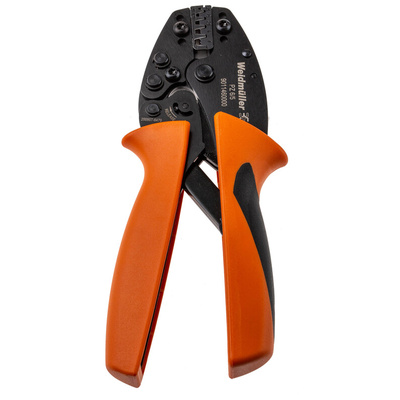

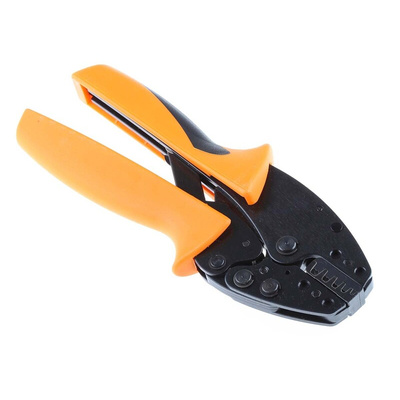

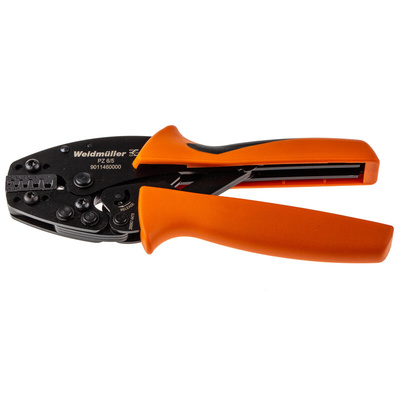

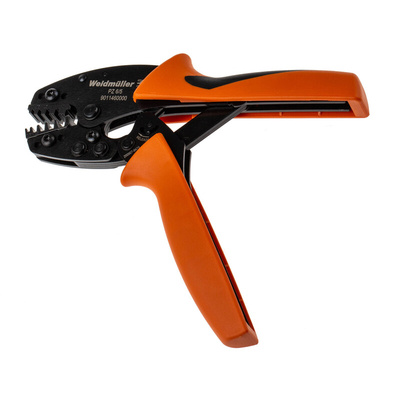

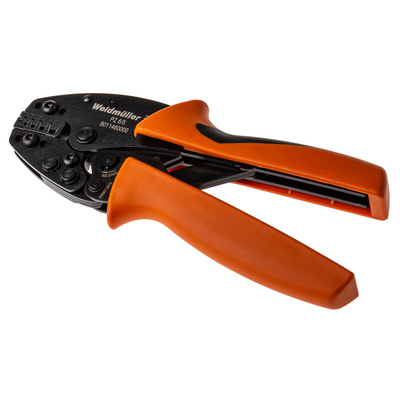

PZ 6//5 Crimp Tool

Weidmuller PZ 6 Roto is a professional tool designed for most demanding customers. It has been designed with a quality and durability in mind from the best materials to ensure long life operation.

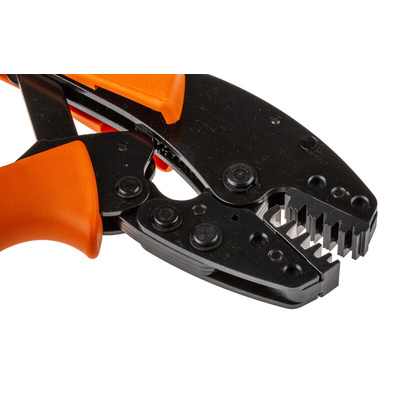

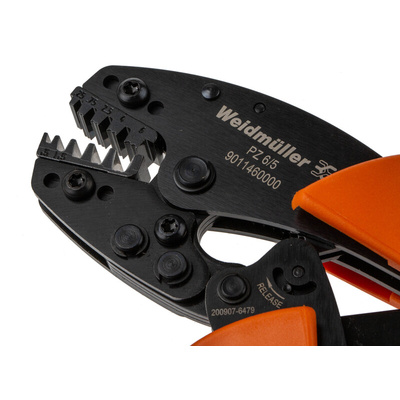

The PZ 6/5 Crimp Tool is suitable for crimping wire end ferrules with or without plastic collars and features a versatile five-profile crimping head.PZ 6/5 Crimping Tool also has a ratchet to ensure accurate and consistent crimping and a release option in case of incorrect operation.

Features and Benefits:
• Manual Tool designed for use with wires and cable ferrules over the complete cross-section range of 0.25 to 6.0 mm²
• Precise Ratchet mechanism guarantees perfect crimping every time
• Release option in the event of incorrect operation
• Compact size: only 200mm long
• Weight: 423g

Typical Applications:
• Maintenance & repair
• Electrical Installations
• Cable assemblies

FAQ’s:
What is the difference between un-insulated and insulated crimp tools?
Un-insulated crimp tools are typically used for general applications, whereas the insulated crimp tools have been VDE tested up to 1000 V, designed for use where electrical current is present.

How do you maintain the product?
• Axles and other movable parts should be regularly lubricated.
• Lubrication* is recommended at least every 10,000 cycles whenever the tool is exposed to contaminants.
• Adjustment of the crimping die nests should also be checked. Readjustment of the pressure adjustment axle is necessary when the pre-load of the tool decreases significantly.

The Importance of a High-Quality Crimp
When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.

Weidmuller Crimping Tool, Manual Type, 200mm Length - PZ6/5 Series - 9011460000

Ratchet up your wiring speed with this crimping tool from Weidmuller. It lets you join two pieces of material by using compression to bond them together. The five-profile crimping head is ideal for use on wire-end ferrules with or without plastic collars, making it a versatile choice. A precision mechanism gears you up for high-quality crimping every time. Thanks to a light weight of 423g, this happy clamper is easily portable so you'll always have it to hand in the field.

• Cross-section range of 0.25 to 6mm² for versatile use
• Release option for easy resetting

Applications

• Maintenance and repair
• Electrical installations
• Cable assemblies

How can I keep this crimping tool working at its best?

The device is designed for a long service life even in the most demanding conditions, but there are a couple of basic maintenance routines to keep it in peak condition. Regular lubrication of axles and other movable parts helps the gears run smoothly, and it's a good idea to do this at least every 10,000 cycles. You should also readjust the pressure adjustment axle when the tool's preload decreases significantly.
