09400030301, HARTING Han HPR Heavy Duty Power Connector Hood

IP68 Hood, Housing and Angled Adaptor

HPR hoods and housings which combine to offer either a sealed bulkhead mounting housing or a sealed angled adaptor.Three separate parts are available as follows:

Top entry metal hood with sealing screw

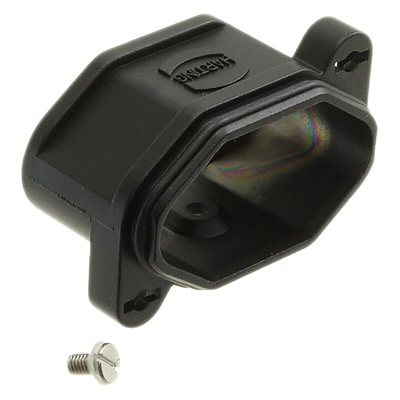

Bulkhead metal housing with sealing screw
Metal adaptor for assembly in angled position

Note

For IP68 metric M20 cable glands see stock no.390-044 and range.

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Harting Han A Series Size 3 A Hoods and Housings

These hoods and housings are compatible with appropriate inserts from the Han A®, D® including Han®8D(U), and Q series. The 'compatibility' table details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.

Dimensional drawing
