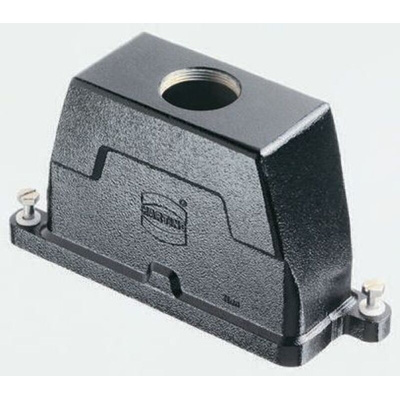

19400100411, HARTING Han HPR Heavy Duty Power Connector Hood, M25 Thread

IP68 Hoods

Metal bodied in top entry or side entry versions
For IP68 metric cable glands see stock no. 390-044 and range

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Range 6 - (Harting Size 10B)

These hoods and housings are compatible with appropriate inserts from the Han DD®, EE, E, ES, EAV, Com and modular series. The 'compatibility' table associated with item types 1 and 2 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.
