09400105411, HARTING Protective Cover, Han HPR Series , For Use With Heavy Duty Power Connectors

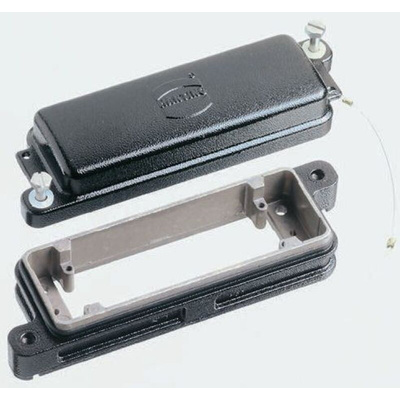

IP68 Panel Mount Housing and Cover

Metal bodied
IP68 rating is provided when housings are used in conjunction with corresponding IP68 hoods or covers
IP68 Panel Mount Housing 426-0789
IP68 Panel Mount Cover 426-0795

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Range 6 - (Harting Size 10B)

These hoods and housings are compatible with appropriate inserts from the Han DD®, EE, E, ES, EAV, Com and modular series. The 'compatibility' table associated with item types 1 and 2 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.

Dimensional drawing
