09400160311, HARTING Han B HPR Heavy Duty Power Connector Housing

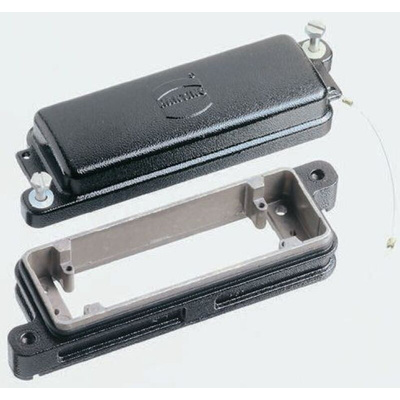

IP68 Panel Mount Housing and Cover

IP68 HPR bulkhead mounting housings and cover

Metal bodied
IP68 rating is provided when housings are used in conjunction with corresponding IP68 hoods or covers

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Note

This product is the housing only

Range 7 - (Harting Size 16B)

These hoods and housings are compatible with appropriate inserts from the Han D®, DD, E,ES EE, Com, HsB and Modular series. The 'compatibility' table associated with item types 1 to 4 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range. If selecting inserts from the Modular series, please note that four inserts are accommodated within these 16B housings.

Dimensional drawing

PCN
