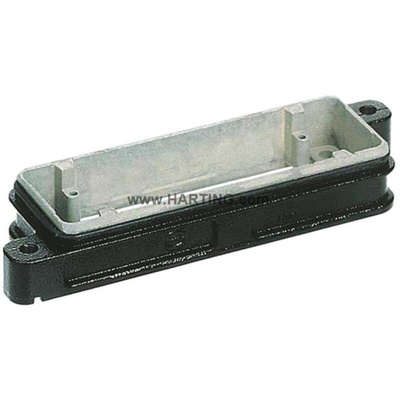

09400240311, HARTING Han HPR Heavy Duty Power Connector Housing

IP68 Panel Mount Housing and Cover

IP68 HPR bulkhead mounting housing and cover

IP68 rating is provided when housings are used in conjunction with corresponding IP68 hoods or covers
See also stock no. 426-0739 and range
IP68 HPR bulkhead mounting cover426-0880
IP68 HPR bulkhead mounting housing426-0874
IP68 HPR bulkhead mounting housing843-9134

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Range 8 - (Harting Size 24B)

These hoods and housings are compatible with appropriate inserts from the Han® D, DD, E, ES, EE, Com, D AV, E AV, and Modular series. The 'compatibility' table associated with item types 1 to 4 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.,Note: Only the Housing 114-8169 can be used with the Han D AV and E AV series. If selecting inserts from the Modular series, please note that six inserts are accommodated within these 24B housings.

Dimensional drawing
