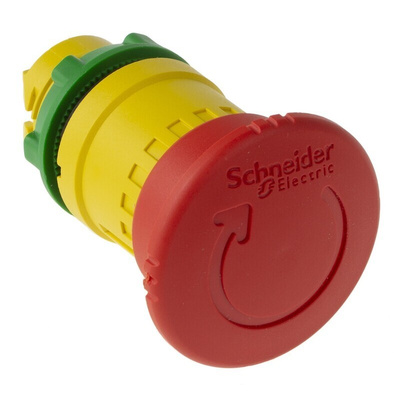

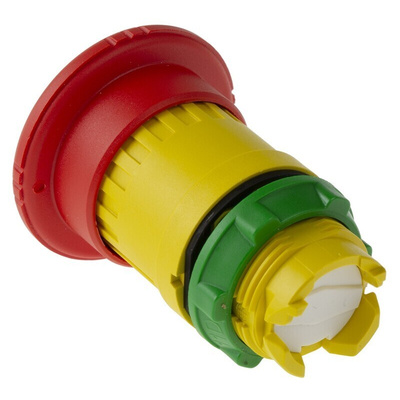

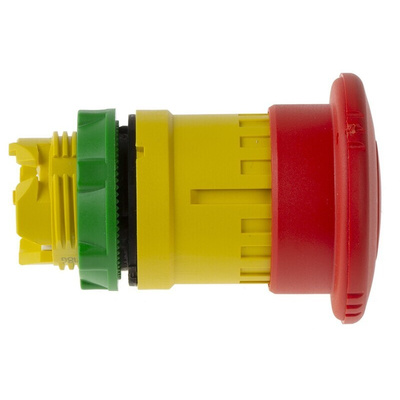

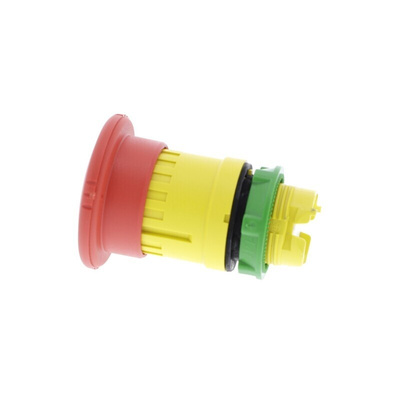

ZB5AS844, Schneider Electric Harmony XB5 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, IP66, IP67,

Schneider Electric Emergency Stop Push Buttons - Harmony XB5 Series

The Harmony XB5 range of plastic emergency push buttons offers easy & flexible installation. The unit itself is extremely robust, suitable for the majority of industrial applications. Ergonomically designed for easy operation. The XB5 push button offers easy panel mounting and improves the overall look and feel of your emergency stop control panel systems. Compact but prominent, the XB5 is at the forefront of machine safety. Ideal for areas that require resistance to chemicals and/or double electrical insulation.

Features & Benefits

• An instantaneous disconnect of your circuit upon alarm & activation of this emergency stop control unit
• Modular system, nearly all shapes and functions are compatible with each other (if you need to switch the push buttons head you can do so without changing the other parts)
• Conformity with IEC, UL, CSA standards - giving you the reassurance of reliability and safety in your industry
• IP65/66 (dust / damp proof, immersion protection)
• IP67 (dust tight, heavy seas protection)
• IP69K - suitable for heavy-duty cleaning (high-pressure washers - 7,000,000 Pa at 55°C, distance: 0.1 m)
• Low-load electrical contact (for greater efficiency & reassurance)
• NEMA rated 4X offering further reassurances against dust and corrosion.
• Schneider Green Premium guarantee (Environmentally friendly & sustainable with minimal hazardous substances used in the construction of the devices, allowing more options for end of life recycling)

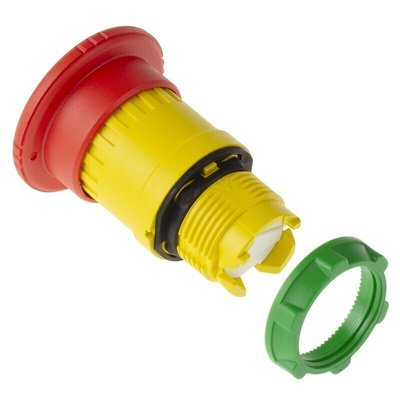

• "Plug & Play" Clip together design (head, body, contact blocks)
• Anti-Loosing system for screw clamp terminals on contact blocks, preventing disconnects from the base unit
• The XB5 E-Stop button comes in varying sizes, including 22 mm cut out (compact in nature, but prominent in design and colour)

Applications

• Energy infrastructure industries
• Food and Beverage industries
• Water and Waste Water management systems
• Metal, Mining and Minerals industries
• Oil and Gas industries

Schneider Electric Push Button Switch, E-Stop Type, Twist-Release Actuation - Harmony XB5 Series - ZB5AS844

Make sure you're ready for anything with this push button switch from Schneider Electric. It shuts off machinery in a flash to protect users from hazardous situations. The unit comes with screw clamp terminals and an anti-loosing system that cuts out the risk of accidental disconnection. That means you can be sure your E-stop is reliable. As it slots into a standard 22mm cutout, it's a doddle to mount. Thanks to a wide operating temperature range between -40°C and +70°C, this is a safe choice for use in challenging conditions.

Features & Benefits

• Durable plastic material is long-lasting and resists corrosion
• Mechanical durability of 300,000 cycles for long-term use
• Bright red colour for easy identification in emergencies
• IP69K-rated, so it's shielded from dust and withstands high-pressure jets of water
• Up to 50gn shock resistance so it's suitable for use around heavy machinery

Applications

• Engineering workshops
• Construction sites
• Refineries

How do I reset this push button switch?

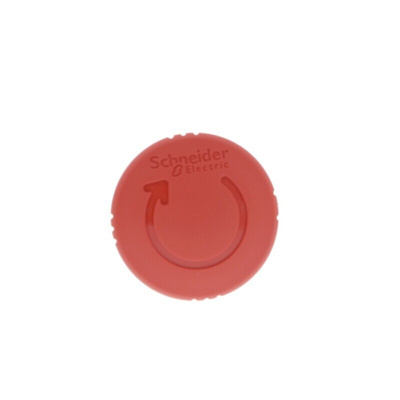

After the button's been pressed, you need to turn it clockwise to reset it. This stops machinery from restarting accidentally before the all-clear has been given.

How big is the button?

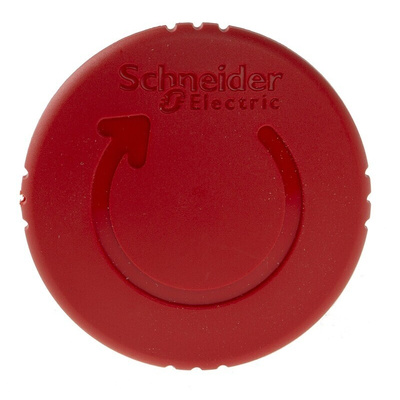

The flat-topped button has a wide diameter of 40mm, meaning it's easy to press, even if you're wearing gloves.

UL E164353
