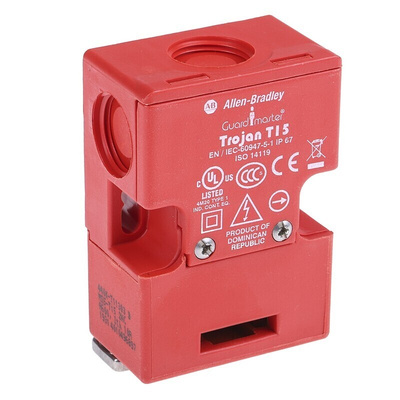

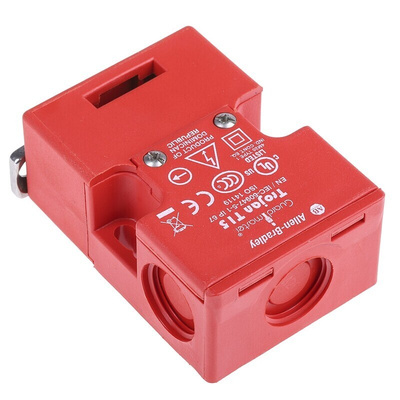

440K-T11303, Allen Bradley Guardmaster 440K Safety Interlock Switch, Fibreglass, 2NC, Выключатель

Allen Bradley Guardmaster Safety Interlock Switch

The Allen Bradley Guardmaster Trojan T15 safety interlock switch has 2NC contacts. It has a voltage rating of 600VAC and 600VDC. It is fitted to the leading edge of sliding, hinged, or lift-off guards. This has dual key entry slots along with rotatable heads, movable only by releasing the cover screws. It is available with four actuator entry options.
Note:
Units are supplied with a standard actuator, other actuators may be ordered separately.
This safety device can be used with GuardLink, a new safety linking technology from Allen Bradley Guardmaster. GuardLink simplifies and reduces the connection time of the safety system while providing real-time diagnostic information over Ethernet IP. This simplifies the identification of the location of the device that has tripped the safety system. Thus, it reduces downtime and improves the overall efficiency of the machines. For more details, please refer to the GuardLink brochure

Features and Benefits

Actuator type is Standard
Maximum current is 2.2A, 6A
Housing material is glass filled PBT

Stainless steel head extends switch life by offering resistance to wear and/ or misalignment
2 actuator entry positions options including front and end entry
30N lock-out force

Certifications

EN 954-1
ISO 13849-1
IEC/EN 60204-1
NFPA 79
EN 1088
ISO 14119
IEC/EN 60947-5-1
ANSI B11.19
AS 4024.1
cULus approved
TÜV certified
CCC certified
IP67 rated (Enclosure)
