T0053256699N, Weller WDD 81V Compressed Air Desoldering Station 80W, 230V, Паяльная станция

Note

Please be aware solder wire is not included with this Soldering Station. Why not try RS brand Solder wire? 756-8884

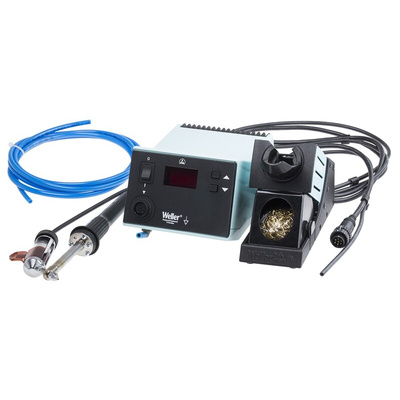

Desoldering Station WDD-81V

Introducing the Weller WDD 81 Desoldering Station. A microprocessor-controlled single output rework station for professional desoldering applications. Supplied with desoldering iron, replaceable nozzles and safety rest, this complete set is ideal for desoldering PCB boards with through-hole components. The ergonomically designed DSX 80 desoldering nozzle offers maximum comfort and firm grip even in extended use. The vacuum is activated by a switch incorporated in the handle. The DSX 80 is fully compatible with a wide range range of nozzles and CSFs.
The Weller WDD 81V is available with two plug options to choose from:
• F-Type (Shuko) plug - 431-0323
• G-Type (UK) plug - 343-8600

Features and Benefits:

PUDD 81 Control Unit:
• Power Consumption: 95 W
• 1 channel
• Digital controlled electronic for soldering or desoldering tools up to 80 W
• Compressed air converter provides vacuum for the desoldering iron
• Temperature control via buttons
• 3-position digital display
• Antistatic housing
• Equipotential bonding (normal state hard grounded)
• Automatic tool recognition
• Inlet pressure 500 - 600 KPA (58 - 87 psi) oil-free, dry compressed air or inert gas
• Dimensions: 166 x 115 x 101 mm (W x L x H)
• Additional functions can be programmed using optional Calibration Box WCB-1 including: temp. lock, set-back time, temp. offset and °C/F

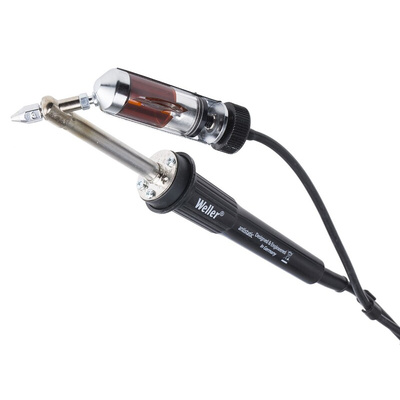

DSX 80 Desoldering Iron:
• Threadless nozzle fixture system
• External solder collector
• Same working position as usual soldering irons
• 80W, 24V

Typical Applications:

Soldering / Desoldering Irons are used to work and rework solder in all manner of applications, particularly in repairing or building PCB circuit boards with SMD and through-hole components. They are commonly used in electronic prototyping and production, and any application where a circuit board component might have to be removed or adjusted. Soldering / Desoldering Irons are often used by:
• Engineers
• Electricians
• Metalworkers
• Jewellers
• Home inventors

FAQs:

What is included in the set?
• PUDD 81 Control Unit 230 V
• DSX 80 Desoldering iron 80 W

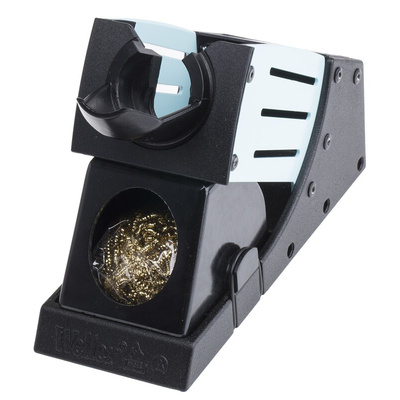

• WDH 30 Safety rest
• 2 Nozzles (DX 112 & DX 113)
• Cleaning set
Do you stock replacement parts for this desoldering iron?
Yes, the full range covers:
• Iron Filter Cartridge - 533-0154
• Desoldering Iron Guards – 517-700
• Vacuum Glass Tube with film – 517-671
• Desoldering Iron Filter – 517-665
Do you stock compatible nozzles?
Yes, the DSX 80 Desoldering Iron is compatible with DX & XDS series threadless fixture system nozzels from Weller e.g:
XDS 1 - 764-2904
XDS 5 - 764-2913
DX 113 - 405-3525
DX 117 - 914-0104
