822N, Weller Erem ESD Safe Side Cutters, Кабельные ножницы

Side Cutters

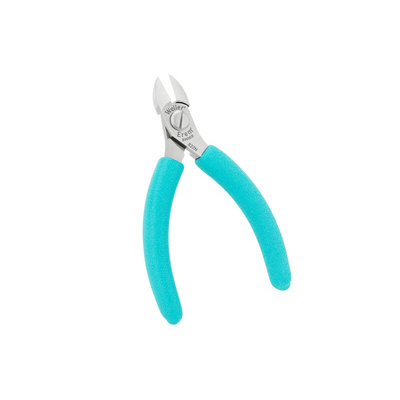

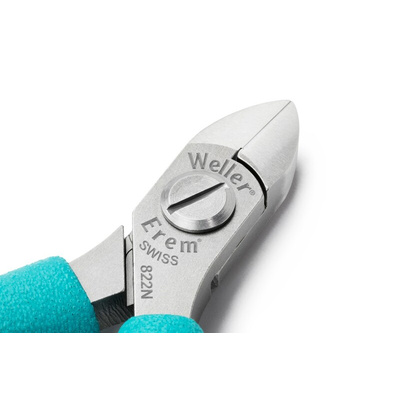

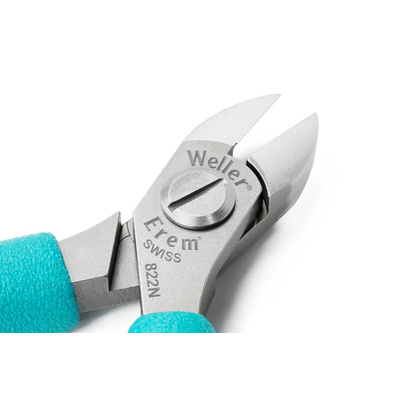

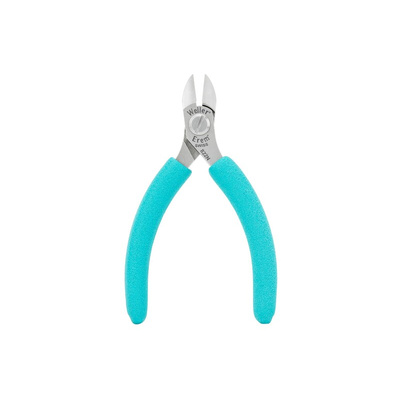

Erem by Weller Flush Type Side Cutter – 822N

Series 800 oval head all-purpose flush type side cable cutters suitable for medium-hard and soft wire.
The 822N is an all-purpose full flush side cutter with a large oval head and ESD-safe, cushioned ergonomic handles that ensure user comfort even over long usage periods. The blades are made of superior-grade tool steel with an anti-glare finish. The integrated unbreakable springs allow for a constant, free-opening force.

Features & Benefits:

• Oval head: the most common head type, suitable for standard cutting applications for which access is not an issue.


• Flush cut: allows for a flat cut at the end of the wire.


• Overall length of 120 mm: the strongest version of Erem by Weller’s cutters, used for applications where high cutting capacity is required.


• Ergonomic handle designs: improves user comfort and grip during use, even over long periods of time.


• Anti-glare finish: prevents glare during use, ensuring precision and high user visibility.

Specifications:

• Max. cutting capacity (medium wire): 1.2 mm


• Max. cutting capacity (copper wire): 1.8 mm


• Jaw length: 15 mm


• Overall length: 120 mm


• Material: High-Grade Tool Steel


• Weight: 67g


• Series: 800


• Cut type: Flush


• Head thickness: 7.2 mm


• Head width: 13.5 mm


• ESD Safe: Yes

Typical Applications:

Cable Cutters are tools designed with electricians in mind but a reliable set of cable cutters should always be at hand. These tools are ideal for cutting and stripping wires of all shapes and sizes. Wire cutters feature ergonomic designs for comfort, confidence and safety of use. Speciality models are suitable for insulated wire cutting and use in Electrostatic Discharge (ESD) environments. Cable cutters are commonly used by:

• electricians


• gas engineers


• telecommunication engineers


• car mechanics


• DIY enthusiasts

FAQ:

Are these insulated?
These cutters are ESD-Safe, meaning any possible electrostatic discharge is dissipated and prevented from building to levels that are potentially dangerous.
However, these are not VDE-certified and so cannot be used on live electrical wires or cables.

What’s the maximum cutting capacity?
The maximum cutting capacity for medium-hard wires is 1.2 mm and the maximum cutting capacity for the soft wires, such as copper, is 1.8 mm.

822N Datasheet
