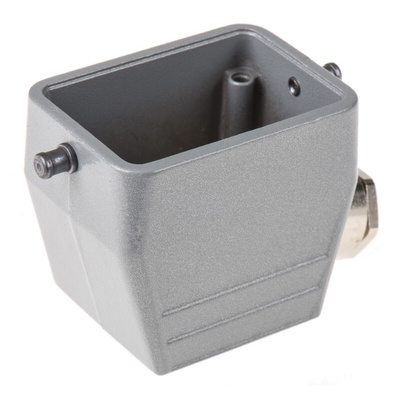

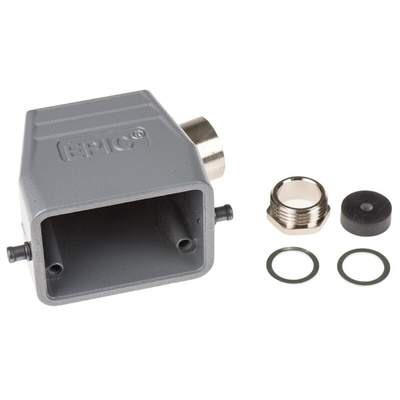

19012000+71200200, Epic Contact H-B Heavy Duty Power Connector Hood, 6 Contacts, M20 Thread

LAPP Heavy Duty Power Connector Hood, M20 Thread, IP65 Rating - EPIC Series - 19012000+71200200

Make sure your power connections stand up under pressure with this heavy duty power connector hood from LAPP. It shrugs off wear from testing conditions and has an IP65 rating to prove it's dust-tight and resistant to low-pressure water jets. Thanks to a handy side entry port, this is a sure fit for power connections in awkward spaces. An M20 threaded connection means it fits right in with standard industrial equipment.

Features & Benefits

• Nickel-plated brass cable gland helps connections hold firm against movement
• Compact dimensions of 60 (L) x 43 (W) x 52mm (H) slots neatly into busy systems
• Halogen-free hood design, helping to minimise risk of toxic substances forming in fires

Applications

• Agricultural equipment
• Power distribution networks
• Automotive industry

Can I use this connector hood in my outdoor system?

Yes, this product's aluminium body is corrosion and UV-resistant, so it shrugs off harsh weather conditions.

Approvals

VDE; CSA; UL; SEV

H-BE / H-DD Hoods & Housings

HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.

Aluminium alloy construction
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts

These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.

EPIC DA-VINCI H-B Tüllengehäuse / Hood / Capot

EPIC Connector Accessories

Manual - Assembly Instructions

Datasheet - 19012000
