19042000+71200200, Epic Contact H-B Heavy Duty Power Connector Hood, 10 Contacts, M20 Thread

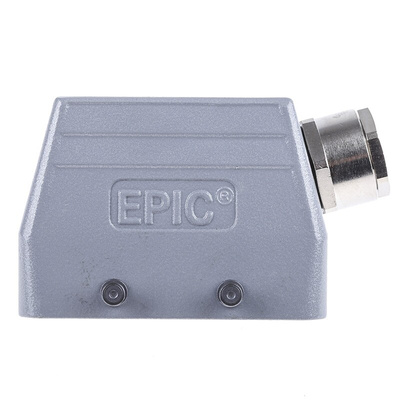

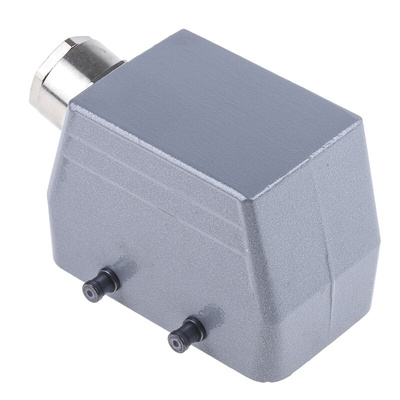

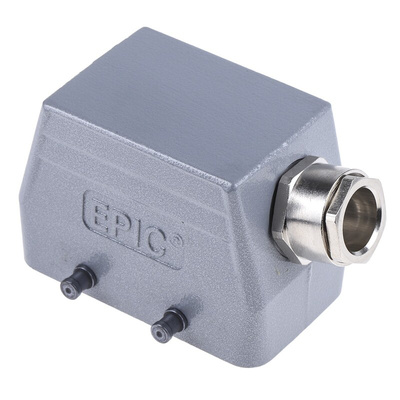

LAPP Heavy Duty Power Connector Hood, Aluminium Body, 90° Cable Exit Angle - EPIC Series - 19042000+71200200

Get your heavy-duty power connectors ready for rugged settings with this hood from LAPP. It's designed for Contact Epic H-BE connector inserts and helps to secure them against vibration and impact in harsh environments. Thanks to its powder-coated aluminium alloy body, this durable piece of kit stays on shift in the face of corrosion, so you can rely on it for long-term use.

Features & Benefits

• Comes with bolts for a double locking lever to ensure a secure connection
• M20 thread for simple assembly that saves time and effort

Applications

• Transportation industry
• Machine building
• Industrial automation

What's the operating temperature range of this hood?

This unit performs safely in a temperature range between -40°C to +125°C, making it a practical choice for use in challenging industrial conditions.

Approvals

VDE; CSA; UL; SEV

H-BE / H-DD Hoods & Housings

HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.

Aluminium alloy construction
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts

These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.
