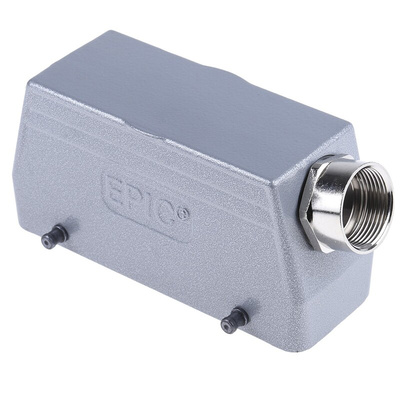

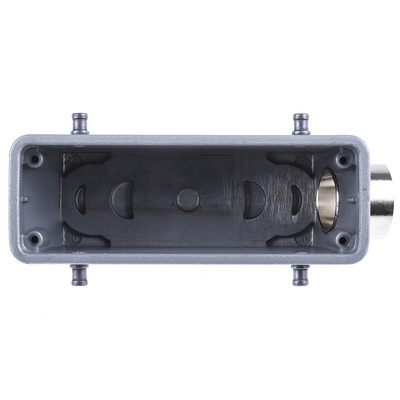

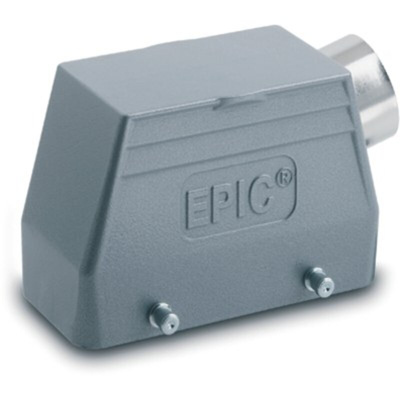

19113000+71200300, Epic Contact H-BE Heavy Duty Power Connector Hood, 24 Contacts, M25 Thread

LAPP Heavy Duty Power Connector Hood, 16A Current Rating, 24 Contacts - EPIC Series - 19113000+71200300

Need a guard to protect your industrial machinery? Choose this heavy duty power connector hood from LAPP. It works in partnership with a contact insert (such as 396-1510) to create a complete power connector unit. As this component helps to keep out dirt and moisture contamination, you'll find it's a reliable workmate for your outdoor equipment. The tough aluminium alloy construction is also resistant to corrosion, so you can be sure of a long service life.

Features & Benefits

• Standard M25 thread size for wide compatibility
• Integrated pips ensure secure attachment to connector housing levers

Applications

• Robotics systems
• Aerospace engineering
• Power plants

How do I set up this connector hood?

This hood has a side entry design, so you'll only need to insert the cable gland housing your wire into the through-hole at its side. Thanks to the threaded design of this hole, you won't need to reach for any special tools.

Approvals

VDE; CSA; UL; SEV

H-BE / H-DD Hoods & Housings

HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.

Aluminium alloy construction
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts

These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.
