19080000+71201300, Epic Contact H-BE Heavy Duty Power Connector Hood, 16 Contacts, M25 Thread

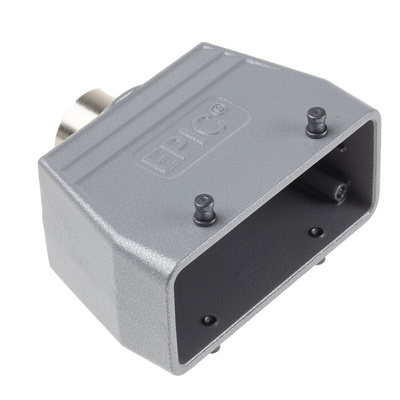

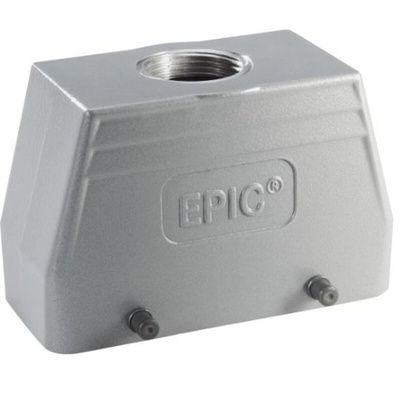

LAPP Heavy-Duty Power Connector Hood, 16 Contacts, Direct Cable Entry - EPIC Series - 19080000+71201300

Keep your industrial connectors safe and sound using this LAPP heavy-duty power connector hood. Its housing is made from aluminium alloy, which puts up with above-average mechanical stress in industrial settings. The housing is also corrosion-resistant, making it ideal for moist conditions. Direct cable entry at the top of the hood makes inserting a power connector a cinch.

Features & Benefits

• Conveniently comes with a nickel-plated brass gland, for quick assembly and cable protection
• IP65-rated housing when latched means it's dust-tight and protected against water jets from any angle
• Non-slip ridges on the hood for comfortable handling

Applications

• Light and sound technology
• Plant engineering
• Plastics industry

How do I secure this hood to a compatible part?

This connector hood has built-in pips that connect with compatible connector housing levers, so you can be sure of a secure fit.

Approvals

VDE; CSA; UL; SEV

H-BE / H-DD Hoods & Housings

HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.

Aluminium alloy construction
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts

These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.

EPIC DA-VINCI H-B Tüllengehäuse / Hood / Capot

EPIC Connector Accessories

Datasheet - 19080000

Instruction Sheet - 19080000
