T0051608799, Weller Gas Soldering Iron, Паяльник

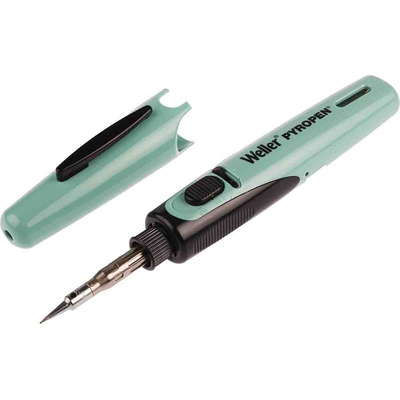

Weller WP60K Pyropen Gas-Powered Soldering Iron

From Weller, this is the WP60K Pyropen, a gas-powered soldering iron that also functions as a hot air tool and a blowtorch in one compact device. The simple self-ignition allows you to get started straight away without the need for an external lighting method. A full reservoir of butane gas fuels the soldering iron for approximately an hour and a gas level sight allows the user to monitor the fuel level in the reservoir to ensure efficient refuelling. Refilling the reservoir from a cylinder is quick and easy, taking just a few seconds.

Features and Benefits:

• As a soldering iron, using a 0.5mm soldering tip, this tool has a max. temperature of 500°C.


• As a hot air tool, this tool has a max. temperature of 650°C.


• As a blowtorch, this tool has a max. temperature of 1300°C.

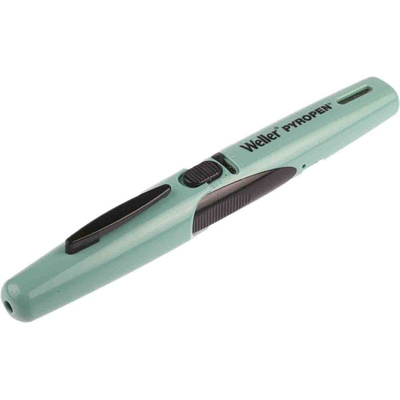

• The upper body cover is provided for user and tool protection when not in use.


• Overall length of 186 cm.


• Overall weight of 74 g.


• Refill butane gas cylinders are available from RS (216-1668).

What’s Included?

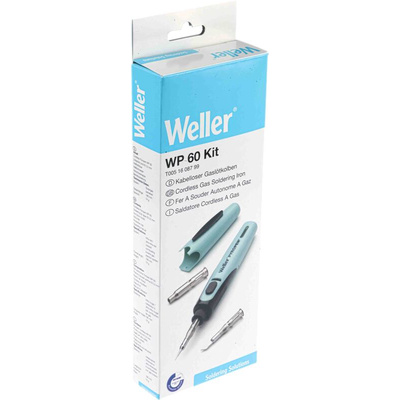

The soldering tip, hot air nozzle, blowtorch nozzle, and a hot knife tip are provided with this soldering iron.
