1060000000, Weidmuller W Series End Cover for Use with DIN Rail Terminal Blocks

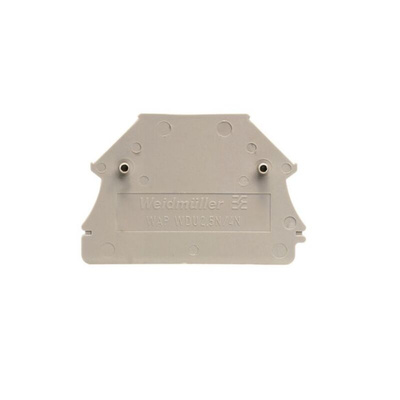

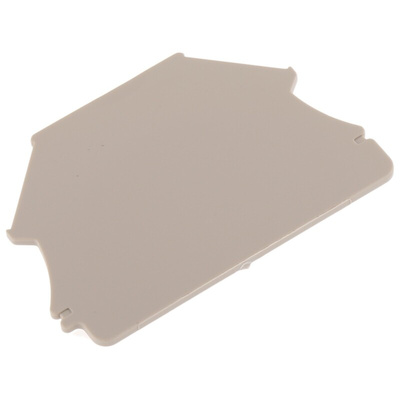

Weidmuller End Plate, Wemid Material, Dark Beige Colour - W Series - 1060000000

Need to protect the last modular terminal in your control cabinet? This end plate from Weidmuller seals the deal. Simply fit it over the exposed side of the component and you can rest assured that dust and moisture won't compromise the performance of your delicate electronics. As this handy accessory stops you from accidentally touching the terminals during operation, it also adds an extra layer of user safety. Thanks to its compact dimensions of 44 (H) x 1.5 (W) x 29.7mm (D), this product is a match made in heaven for any of the terminals from Weidmuller's W series.

• Light weight of 1.8g won't add unnecessary strain on your DIN rail
• Wide operating temperature range between -50°C and +120°C for use in challenging conditions
• Self-extinguishes in under 10 seconds to help prevent the spread of fire

Applications

• Energy management
• Telecommunications
• Electrical installations

What's Wemid?

Wemid is a modified thermoplastic that has been specially designed for Weidmuller's terminal blocks and connectors. Among its many benefits, Wemid offers a high degree of protection against heat and wear for use in harsh conditions.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Datasheet - WAP WDU2.5N/4N -1060000000

Catalogue - Terminal Blocks Klippon Connect
