K21WP-C, Power Breaker PowerBreaker H 13A, BS Fixing, Passive, Single Gang RCD Socket, Polycarbonate, Surface Mount , Switched,

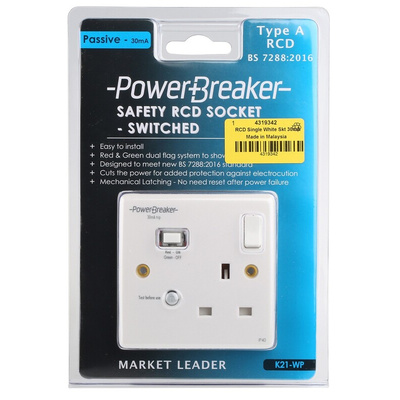

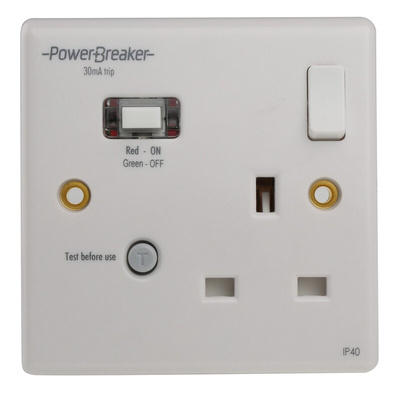

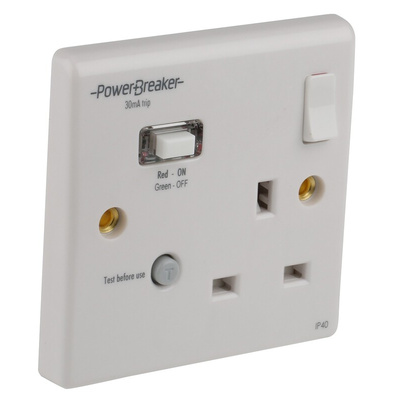

Power Breaker RCD Socket

The Power Breaker K series 1 gang dual pole RCD socket has a voltage rating of 230VAC and a current rating of 13A. It is the world’s first socket to incorporate Piezo actuated technology. It not only provides faster response time but also, greater protection. Attractively styled, this socket is available in white plastic. This RCD switched socket replaces standard sockets to provide permanent RCD protection and faster tripping speed for increased protection.

Features and Benefits

Clear indicator window
Disconnects live and neutral connection on detection of earth leakage
Double-pole contact break
Easy to use two button operation
Height is 86.5mm
Width is 86.5mm
Indicator directly driven by the contacts
Permanent electrical protection
Providing protection against electrocution
Resistant to nuisance tripping
Trip current is 30mA

Applications

Commercial
Domestic
Industrial

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP40 rated

K RDC Sockets

ITS 17061
